GLITTER 801M Battery Spot Welder Capacitor Energy Storage Pulse Welding Machine

GLITTER

(No reviews yet) Write a Review
$189.99
SKU:
JFBSW00041
UPC:
888107107330
Condition:
New
Availability:
Usually ships in 1 business days.
Ship From:
China Warehouse
Shipping Cost:
Order Checkout Calculating
Adding to cart… The item has been added

Product Overview

User Manual(Click Here)

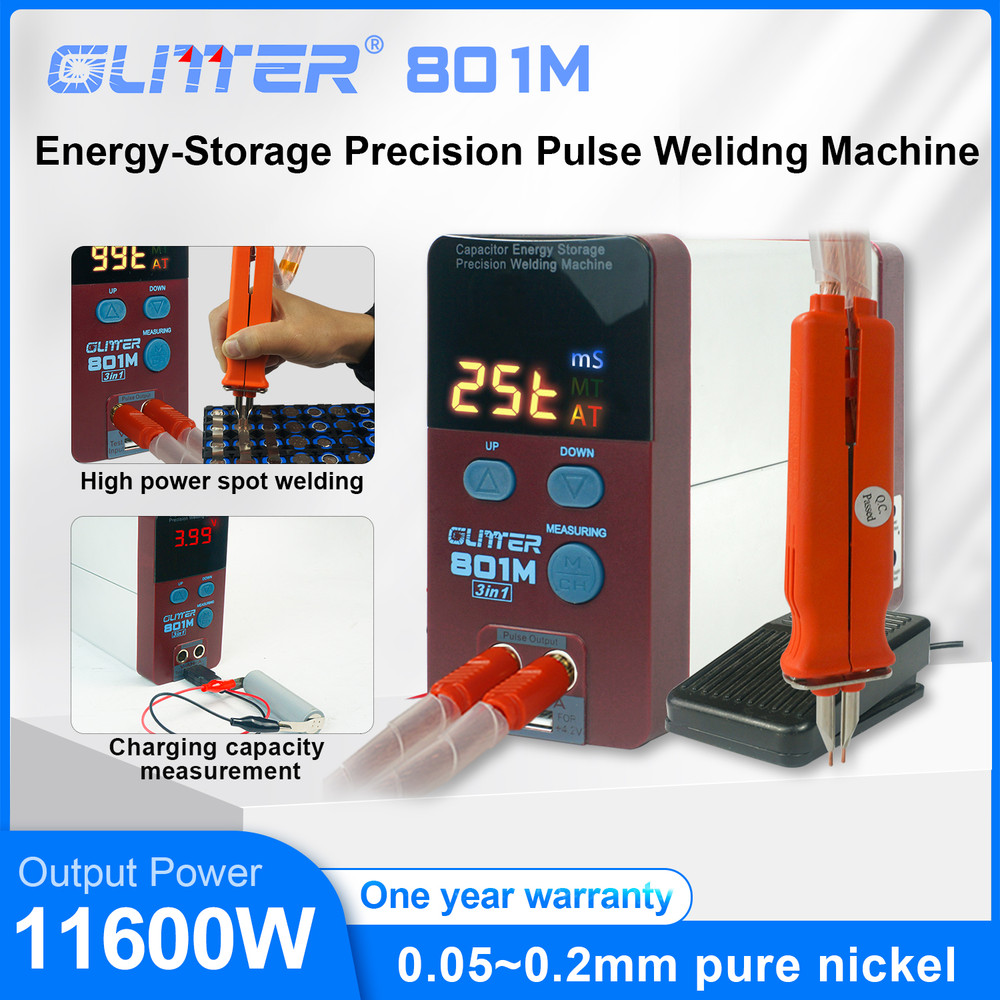

801M Precision Pulse Spot Welder·Charger·Measure 3 In 1

Features:

1.This spot welder will not cause interference to the circuit system or cause tripping.
2.The new-designed capacitor energy storage welder uses the latest energy-gathered pulse technology, is has great welding power,the soldered dot is uniform and beautiful, no blackening.
3.The maximum output of the 801M welder is 11.6 kilowatts. It can be used for large batteries welding.
4.The new operation interface allows you to adjust the energy output according to an object's thickness.
5.The core components of the welder are two super capacitors with long working life and large capacity, the machine can be used for long time welding work.
6.New enhancement to measure the voltage of single-cell lithium ternary battery.

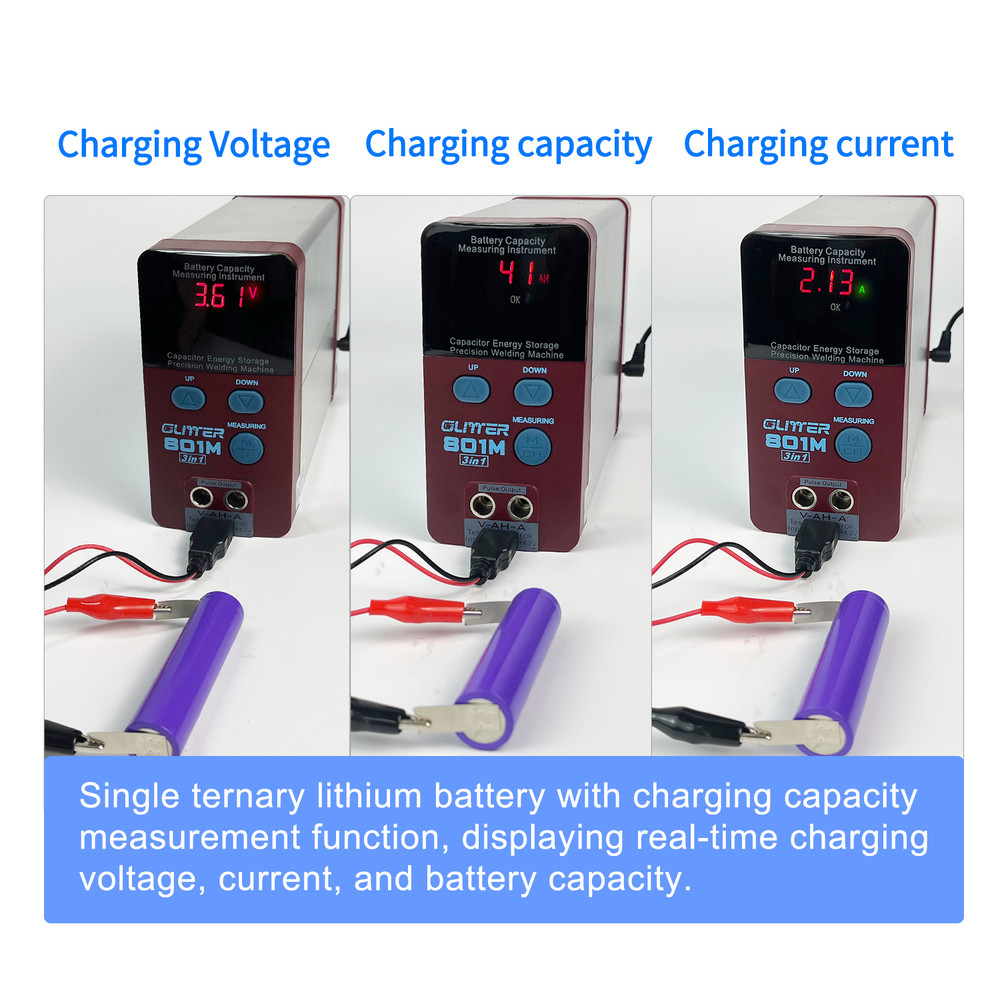

7.New enhancement to measure the battery capacity and charge of single-cell,display the charge voltage,current and capacity.
8.The compact aluminum alloy shell can effectively dissipate heat.

Parameters:

Model :GLITTER 801M
Voltage Output :5.0~5.8V(Max.)
Voltage Input :AC 100-240V 50/60HZ
Welding Energy :116J(Max.)
Pulse Power :11.6KW(Max.)

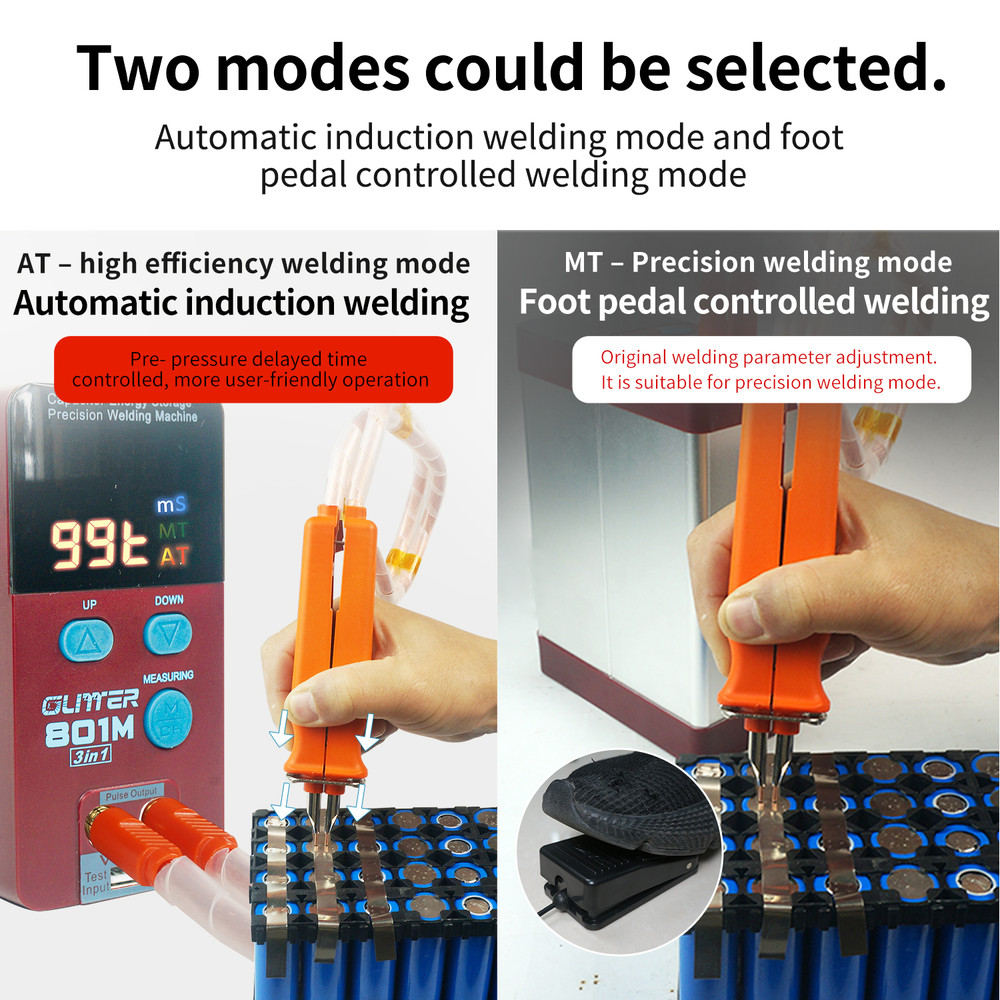

Trigger Mode :Automatic welding/Foot pedal control
Energy Grade :0-99T
Welding Mode :Push down spot welding/Mobile pen spot welding
Pluse Time :0~10mS
Preload Delay :200~500mS
Adapter Parameter :15V2A~3A(Max.)
Charging Time :30~40(min)
DC voltage measure:0~42V
Welding thickness:0.05~0.2mm(Nickelplate)
Capacity measure:0~9.999AH
Charge current:0~2A
Charge voltage:4.2~4.3V





Warranty Information

One Year Limited Warranty
