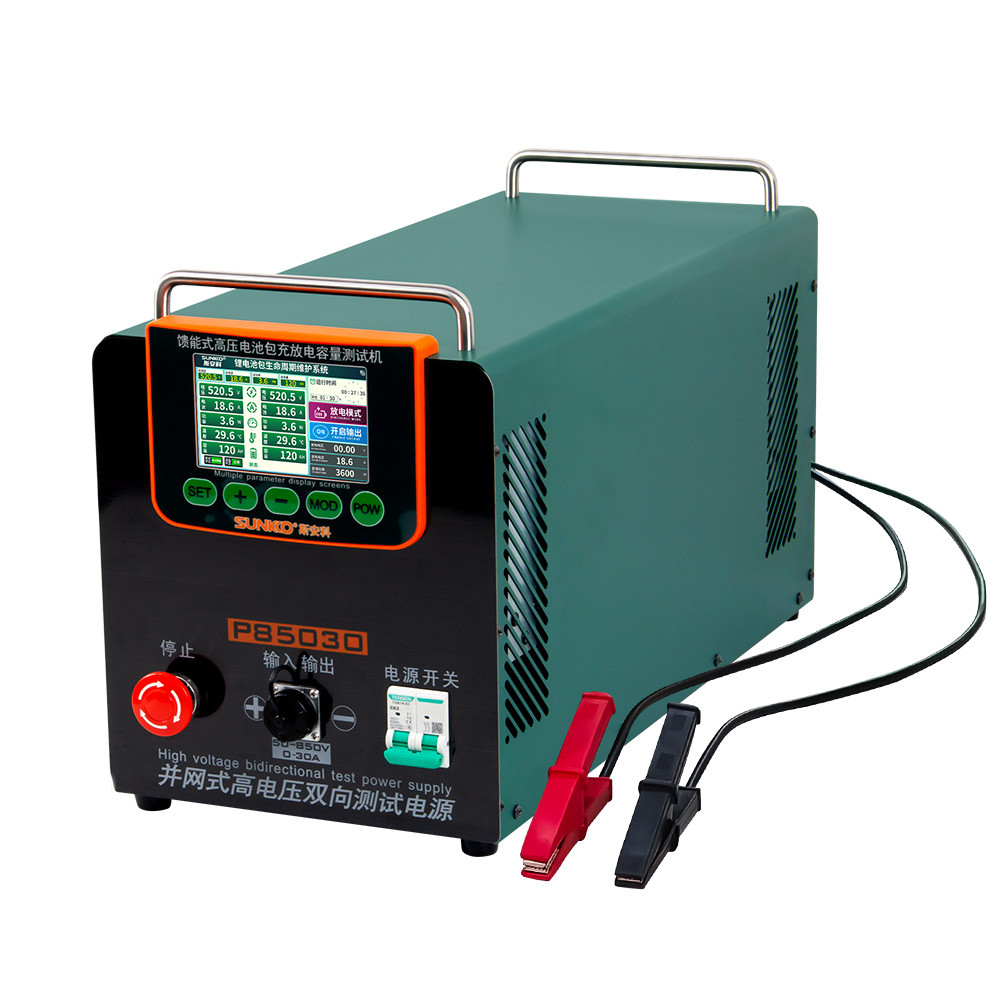

P8530 High-Voltage Battery Pack Charge-Discharge Capacity Tester Energy-Feeding Type Electric Energy Recovery

SUNKKO P8530

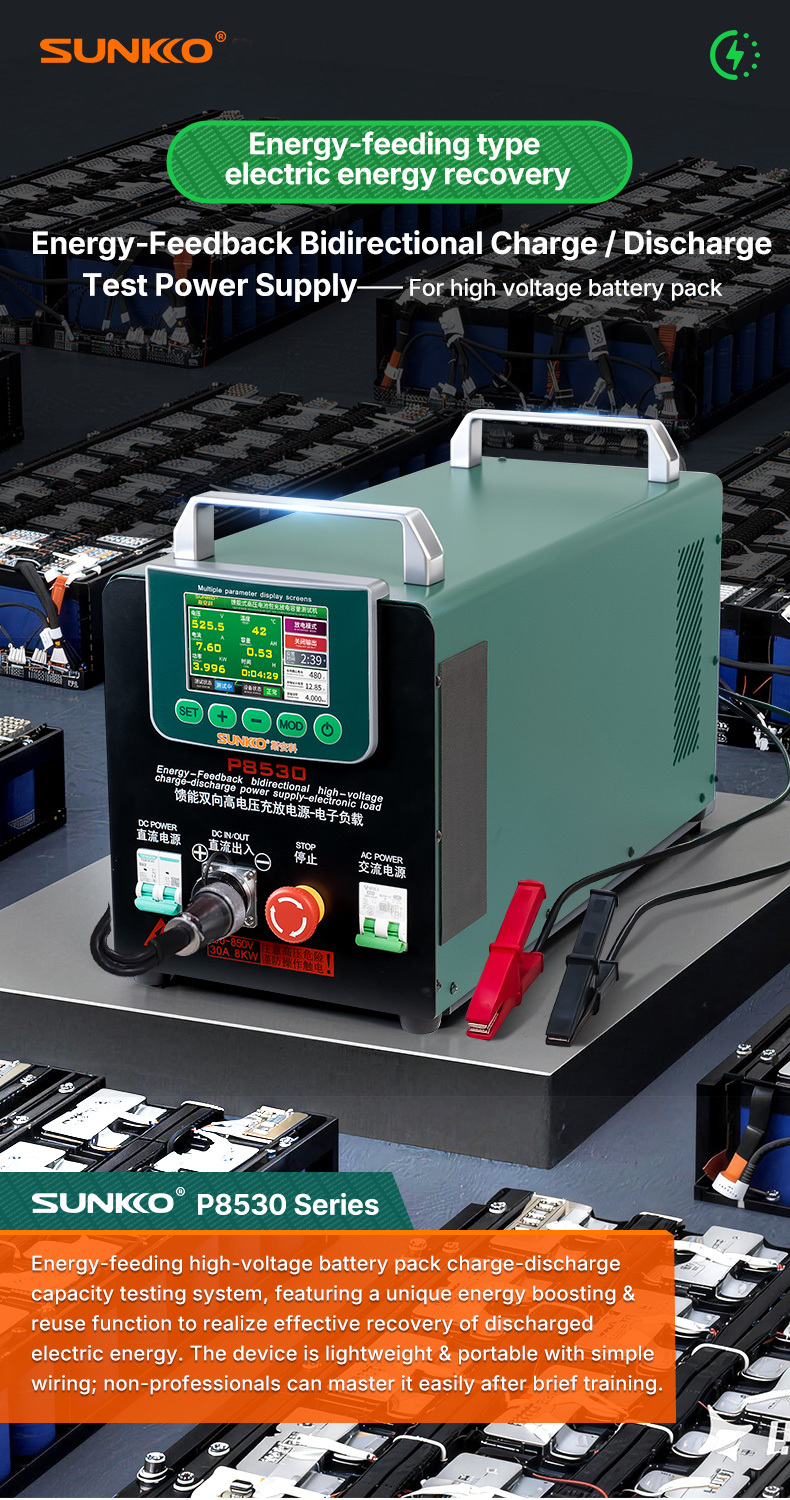

Energy-Feedback Bidirectional Charge / Discharge Test Power Supply —— For high voltage battery pack

Summarizes

The P8530 energy-feeding high-voltage battery pack charging and discharging capacity tester is an integrated high-voltage safe charging and discharging solution designed specifically for new energy battery packs. It is an industrial-grade charging and discharging equipment integrating intelligence, high efficiency and safety protection. Equipped with energy feedback to grid technology, it meets the needs of high-voltage safe discharge and precise capacity detection in scenarios such as battery pack factory shipment and return maintenance.Its unique working method enables the machine to maintain a small size for easy portability even under high power conditions.

Suitable for scientific research institutions, lithium battery distributors, battery pack

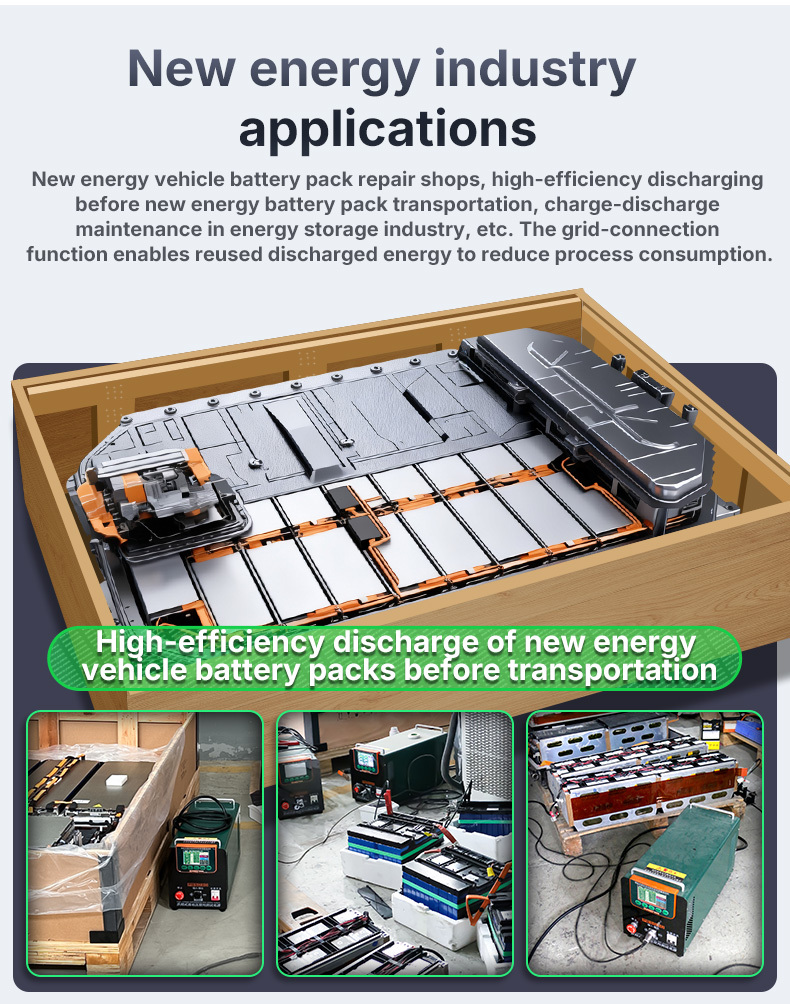

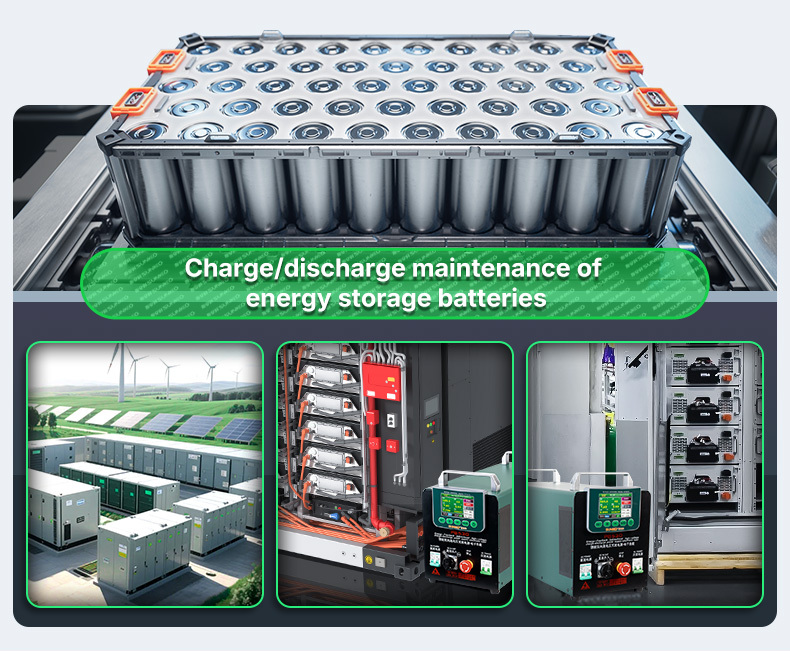

manufacturers and battery protection system production units for battery charging, supplementary charging, activation, etc. Also applicable to maintenance business of power battery packs such as new energy vehicles and energy storage systems.

Features

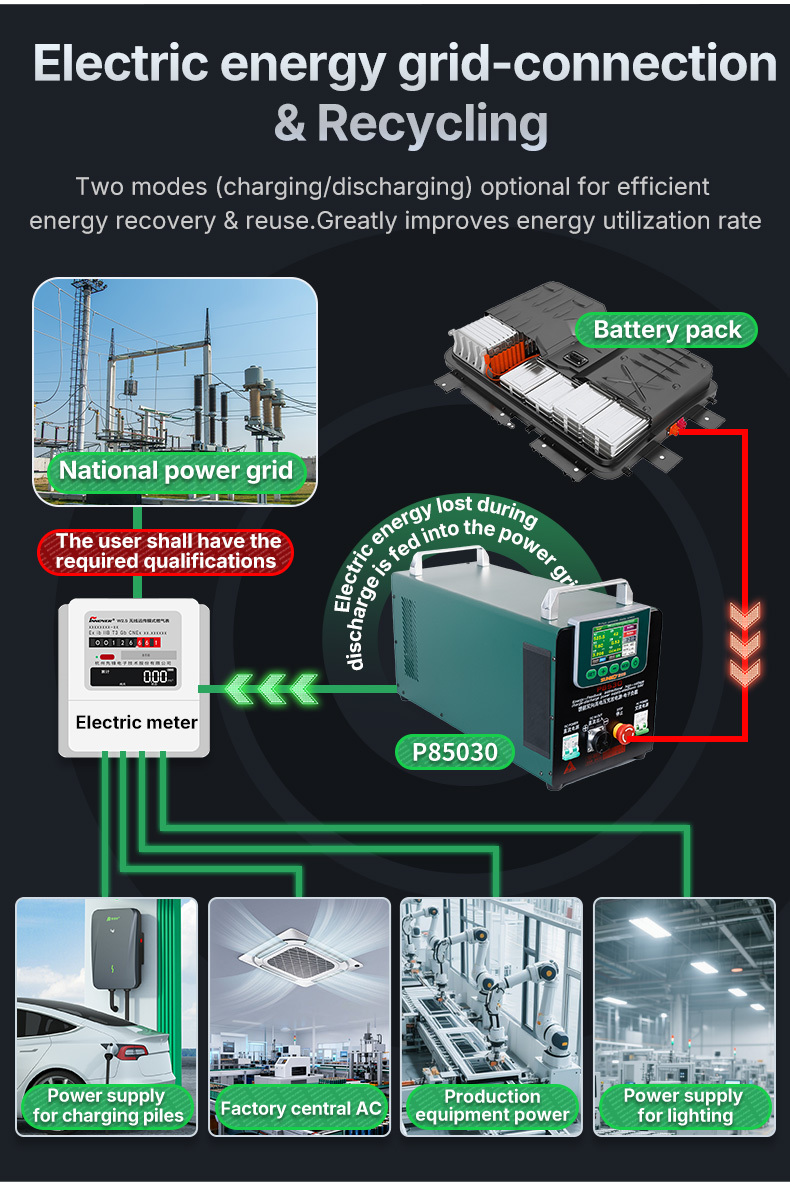

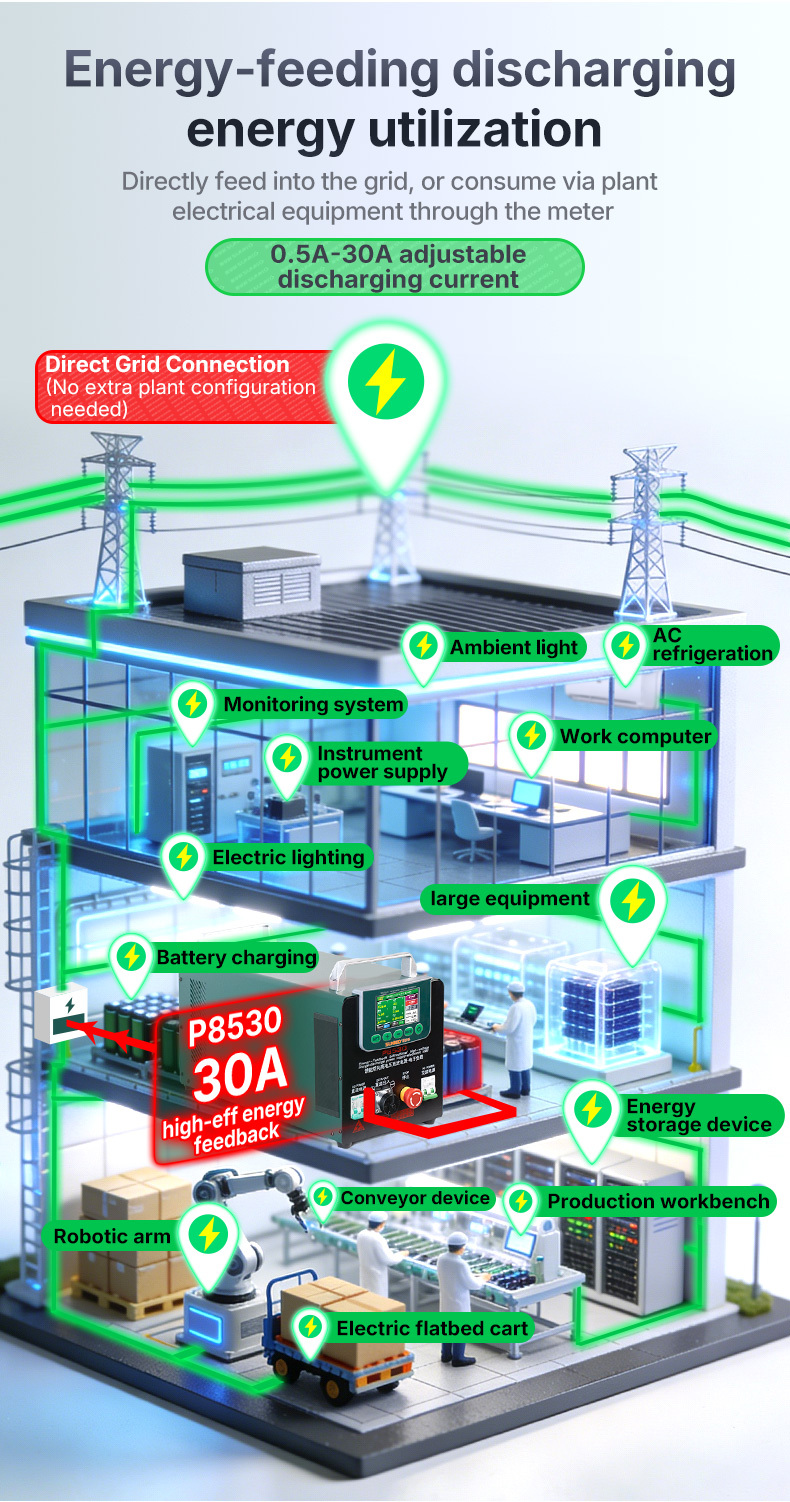

• Bidirectional energy supply in energy-feeding mode, feeding energy back to the power grid.
• Wide voltage setting range of 50~860V, specially designed for charging and discharging tests of new energy high-voltage battery packs.

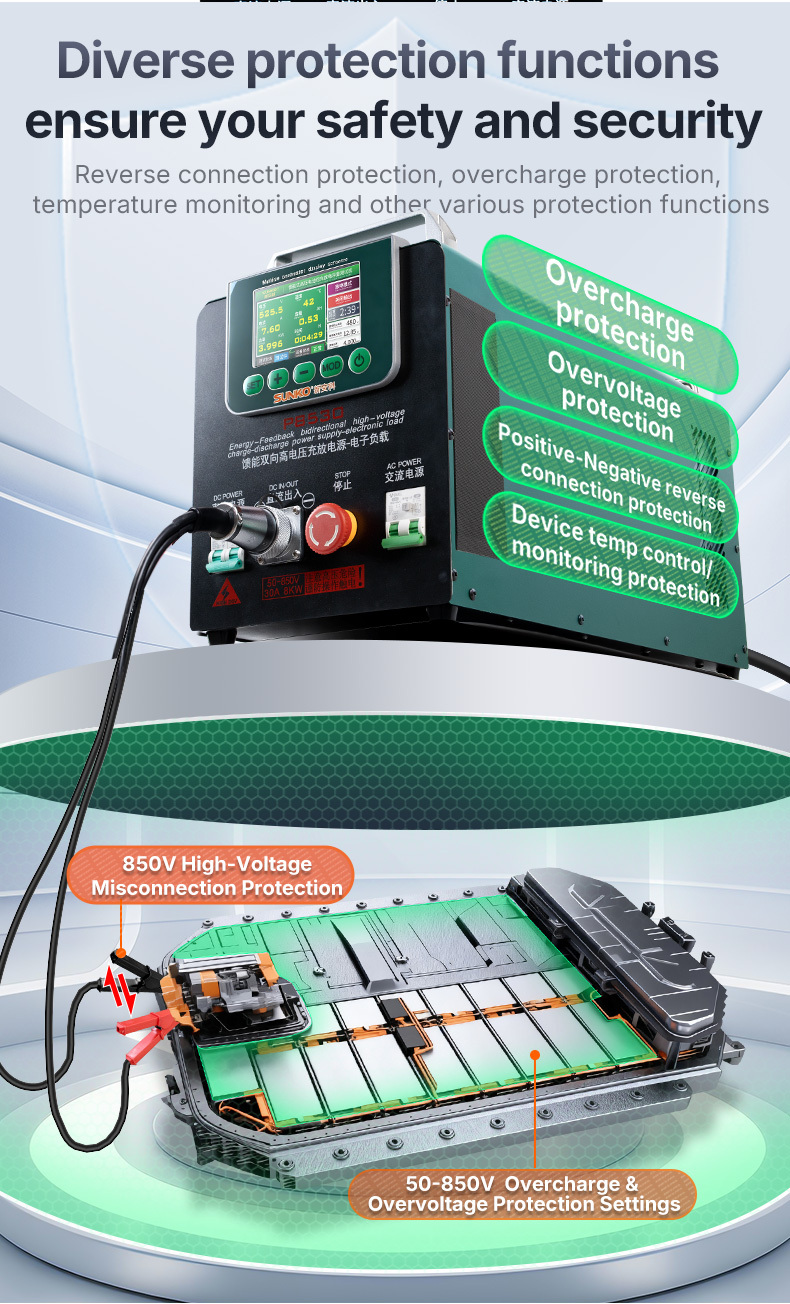

• Triple temperature control protection, real-time monitoring of battery and equipmenttemperature, automatic current reduction or power cutoff in case of abnormal temperature
• Triple current protection (overcharge/overcurrent/overvoltage), AI algorithm dynamically adjusts the charging curve to ensure the entire charging process is within the safe threshold.
• Reverse connection/misconnection protection to avoid short-circuit risks.
• Reasonable layout of internal components, combined with heat dissipation and cooling system, effectively avoiding the impact of high-temperature environment on electronic components.

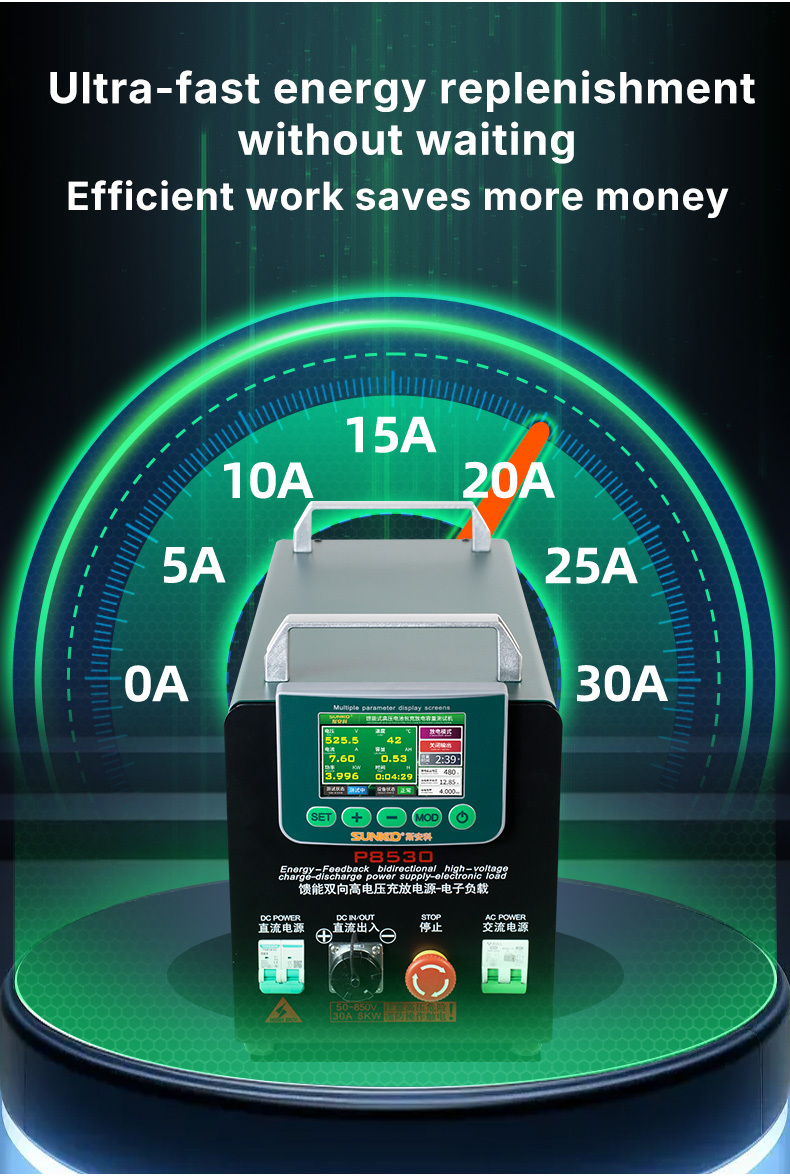

• Maximum output current of 30A, suitable for multiple scenarios such as medium and large energy storage systems and new energy vehicle battery modules.
• Intelligent charging strategy reduces battery loss and increases cycle life by more than 20%.

Parameters

Model:P8530

Input voltage:AC 220V

Input current:≥30A

Maximum power:8KW

Charging voltage:50~850V

Charging current:30A MAX

Discharging voltage:50~850V

Discharging current:30A MAX

Voltage accuracy:±0.1%FS

Current accuracy:±0.1%FS

Product weight:25kg

Product size:565*253*308mm
