SUNKKO G350 Integrated Column Pneumatic Pulse Welding Head-Butt welding

SUNKKO

(No reviews yet) Write a Review
$319.99
SKU:
JFWA00001
UPC:
888107107439
Condition:
New
Availability:
Usually ships in 5 business days.
Ship From:
China Warehouse
Shipping Cost:
Order Checkout Calculating
Adding to cart… The item has been added

Product Overview

User Manual(Click Here)

Glitter 350 Integrated Column Pneumatic Pulse Butt Welding Head

Features:

  1. Original integrated one-piece column pneumatic welding head, which can be used with any machine model/output source.

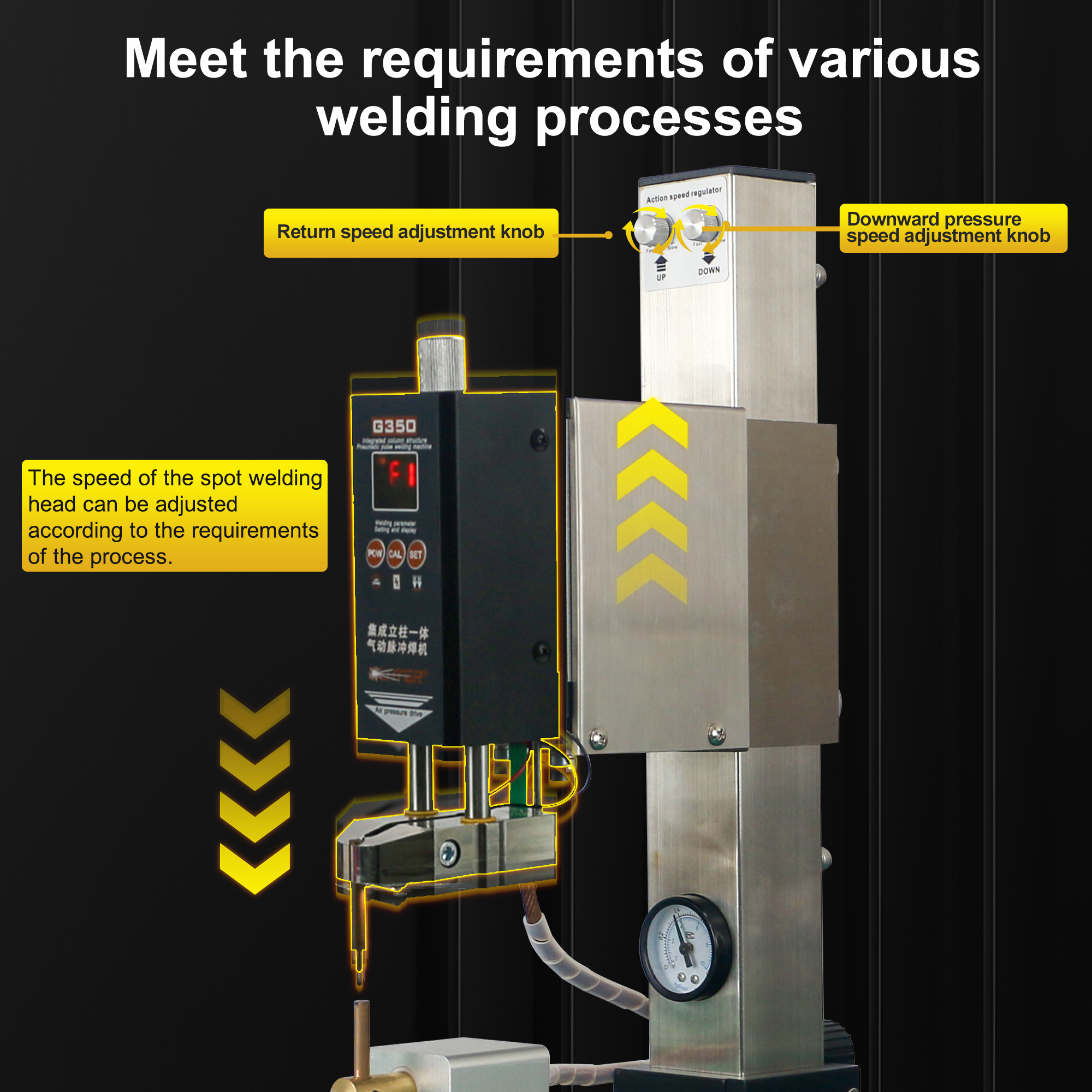

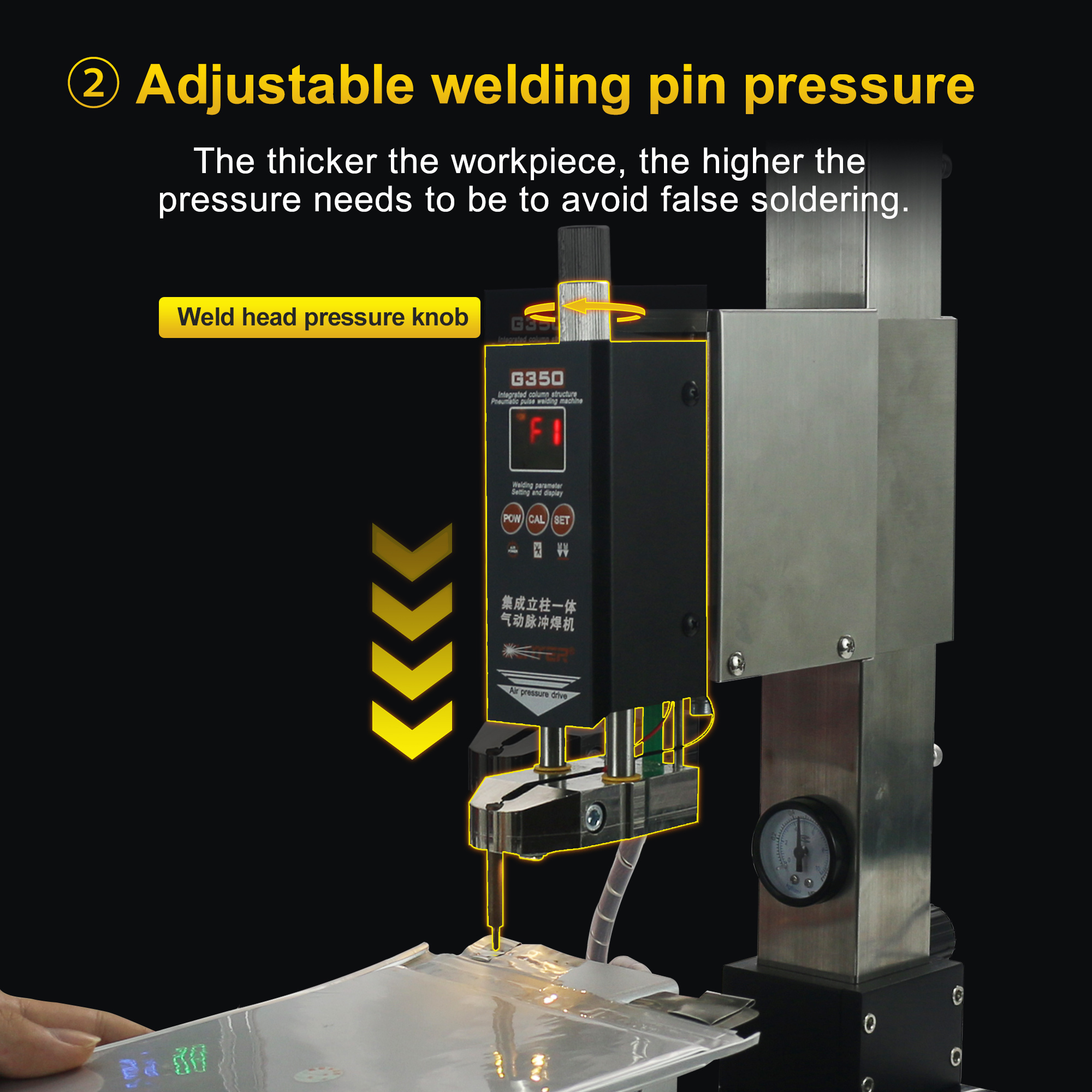

  2. The pneumatic spot welding head adopts a cushion design, the pressure of the welding needle is independently adjustable, and the downward pressure speed and reset speed of the pneumatic welding head are independently adjustable.
  3. Original semi-automatic continuous spot welding function, which can be set to 1~9 times or N times of continuous welding.
  4. The design of the front pressure gauge and pressure adjustment knob facilitates monitoring and efficient adjustment.
  5. Equipped with intelligent heat dissipation and cooling system, suitable for long-term batch operations.

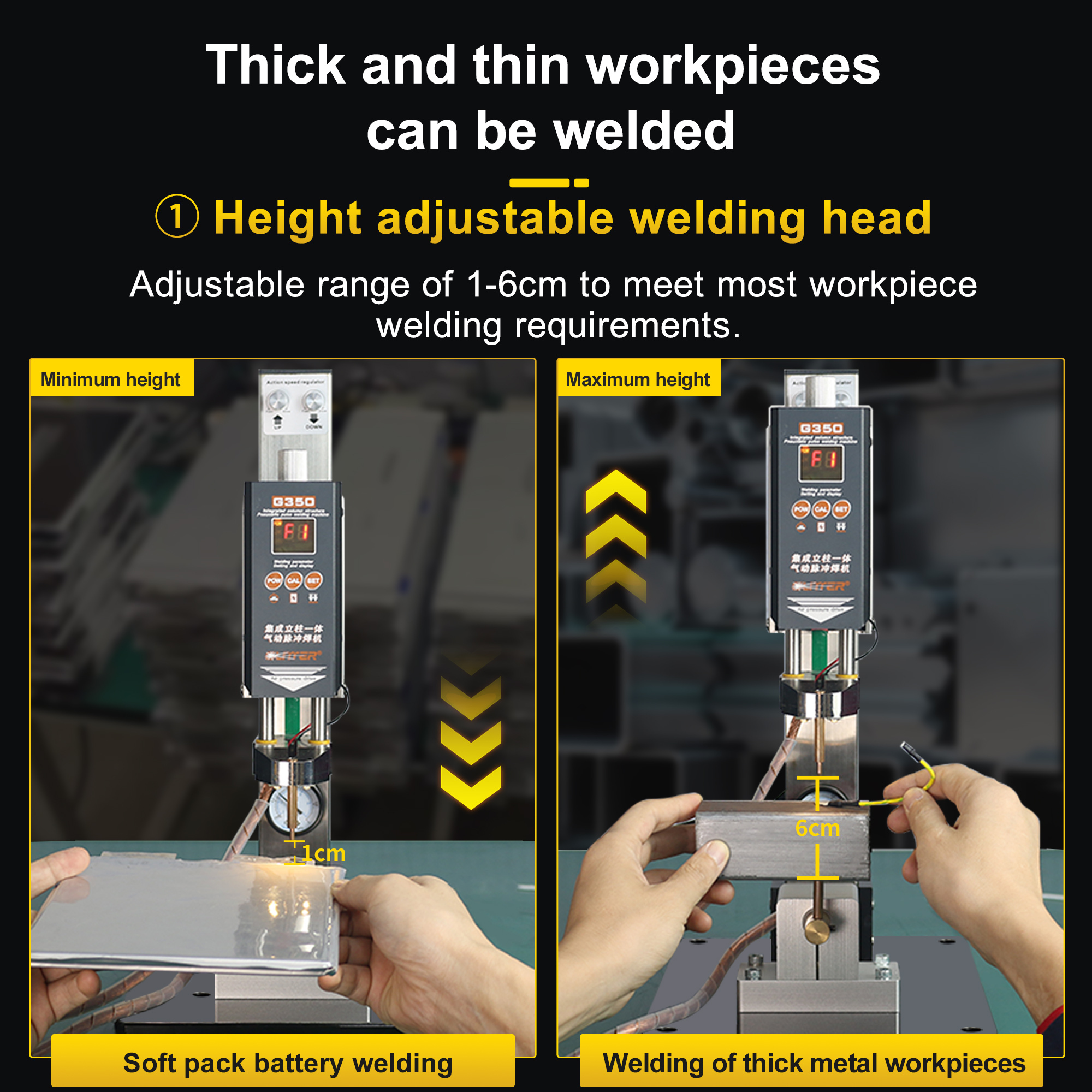

  6. With the function of adjusting the welding head height, objects of different volumes can also be precisely welded.
  7. Pioneering simulated welding calibration mode, zero current output simulates the welding process, reducing the cost of errors.
  8. The design of liftable welding mechanism can meet the welding requirements of workpieces of different heights.

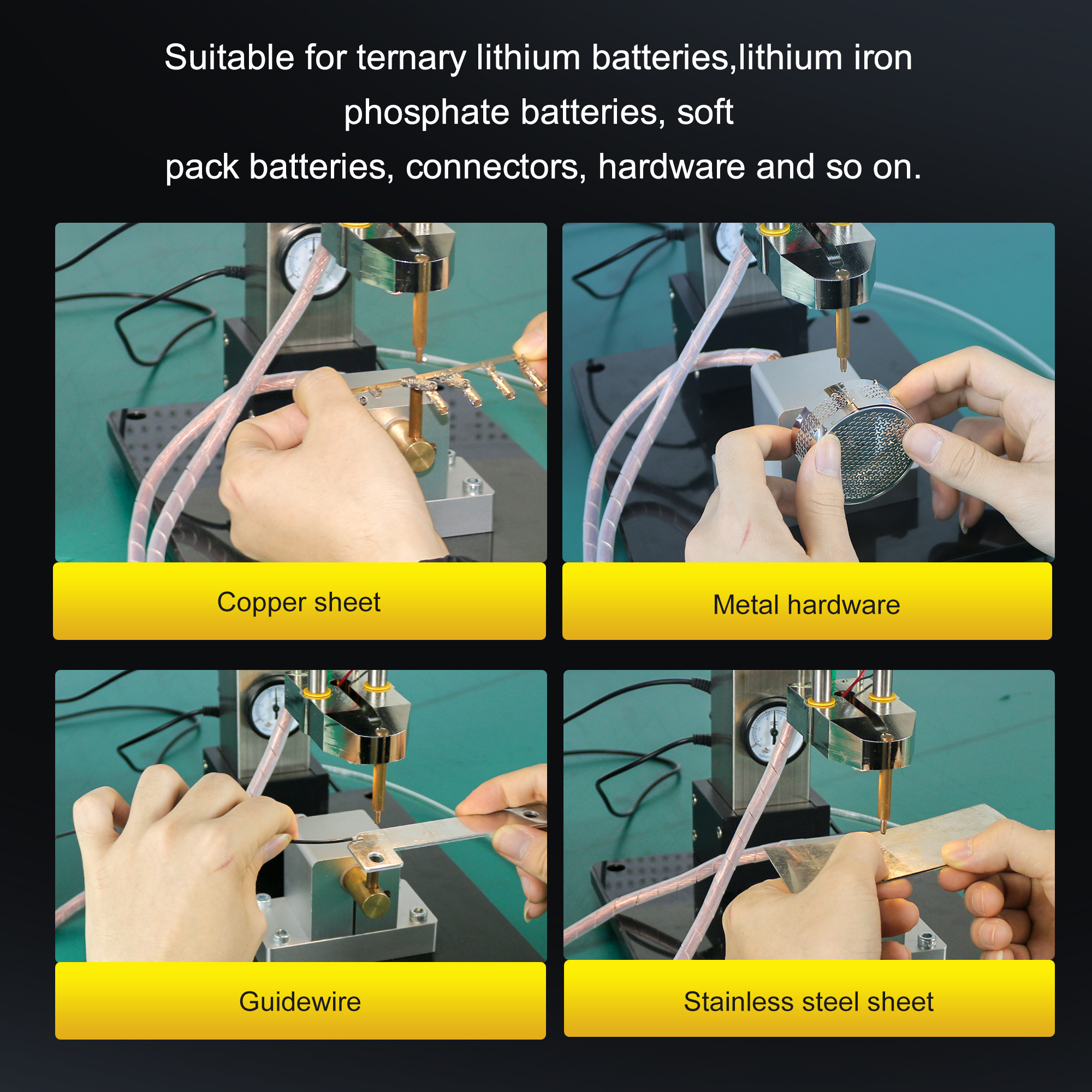

Application

Soft pack battery welding,Stainless steel pipe,Connecting wires,Various hardware ...

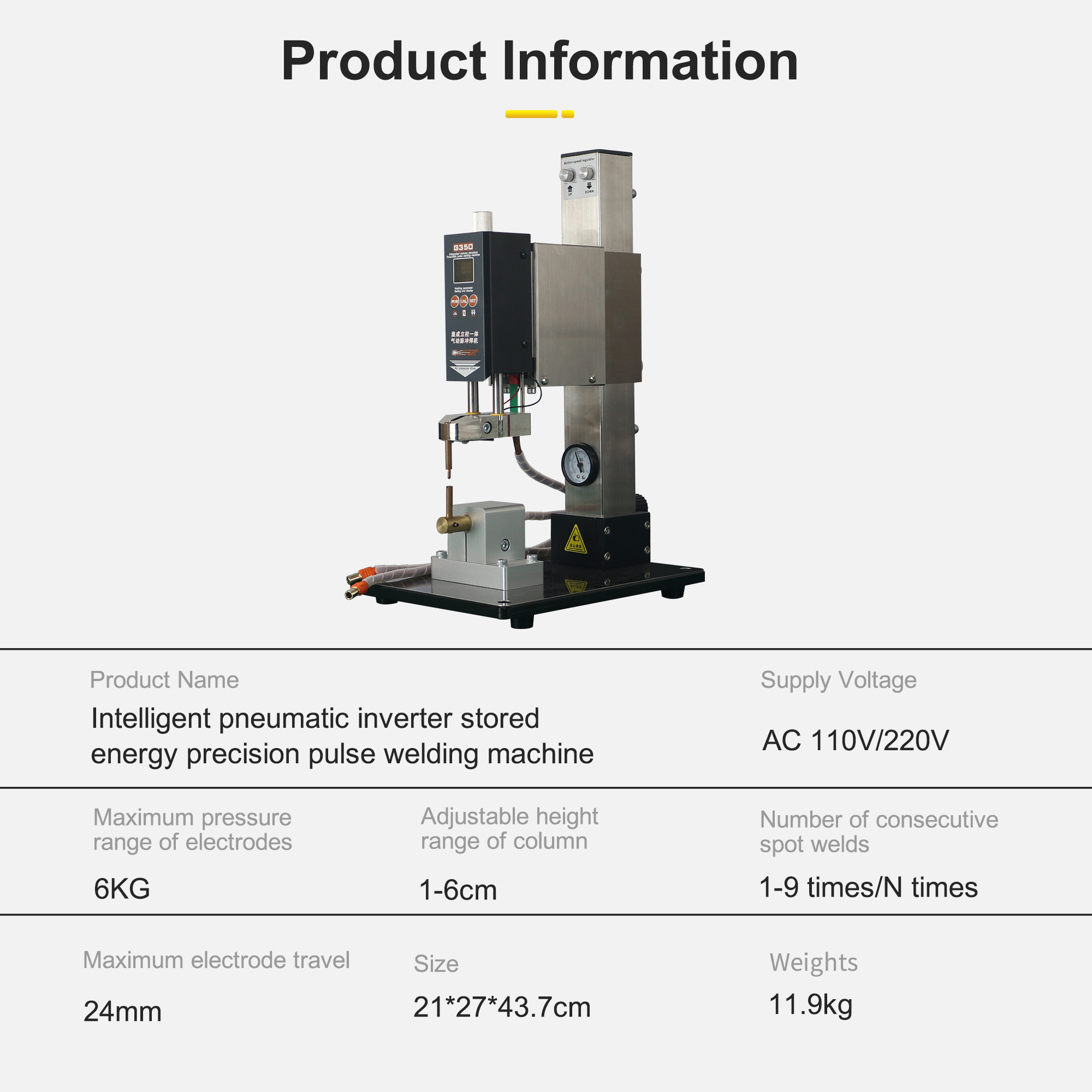

Product Information

Model:G350

Supply voltage:AC110V/220V

Max. electrode pressure:6KG

Max pneumatic stroke of electrode:24mm

Adjustable height range of column:1-6mm

Continuous spot welding times:1-9 times/N times

Machine weight:11.9KG

Size:21x27x43.7cm

Warranty Information

One Year Limited Warranty
