SUNKKO 788S-Pro Battery Spot Welder Transformer Inversion Pulse Welding Machine

SUNKKO

(No reviews yet) Write a Review
$189.99
SKU:
JFHSW00049
UPC:
888107107439
Condition:
New
Availability:
Usually ships in 5 business days.
Ship From:
China Warehouse
Shipping Cost:
Order Checkout Calculating
Adding to cart… The item has been added

Product Overview

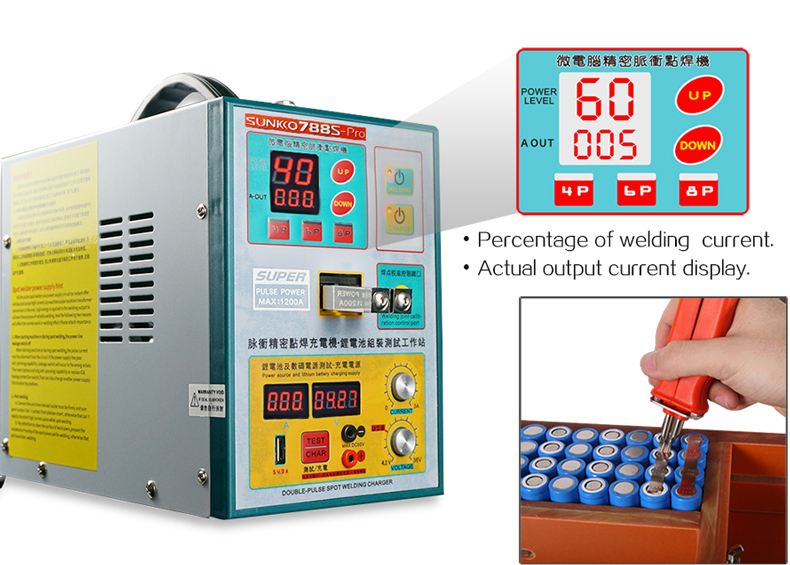

788S-PRO Numerical Control Precision Pulse Battery Spot Welding Machine

Features:

1.It is the first welding machine with three functions, which are precision welding, hand held movable welding and lithium battery charging .

2.There is a three hole 5V 3AUSB charging test device specifically designed for assembly testing, and charging of mobile power supplies.

3.The knob can be used to quickly set the pulse group(18 pulses), and the high current slow welding mode is suitable for welding thicker nickel sheets.

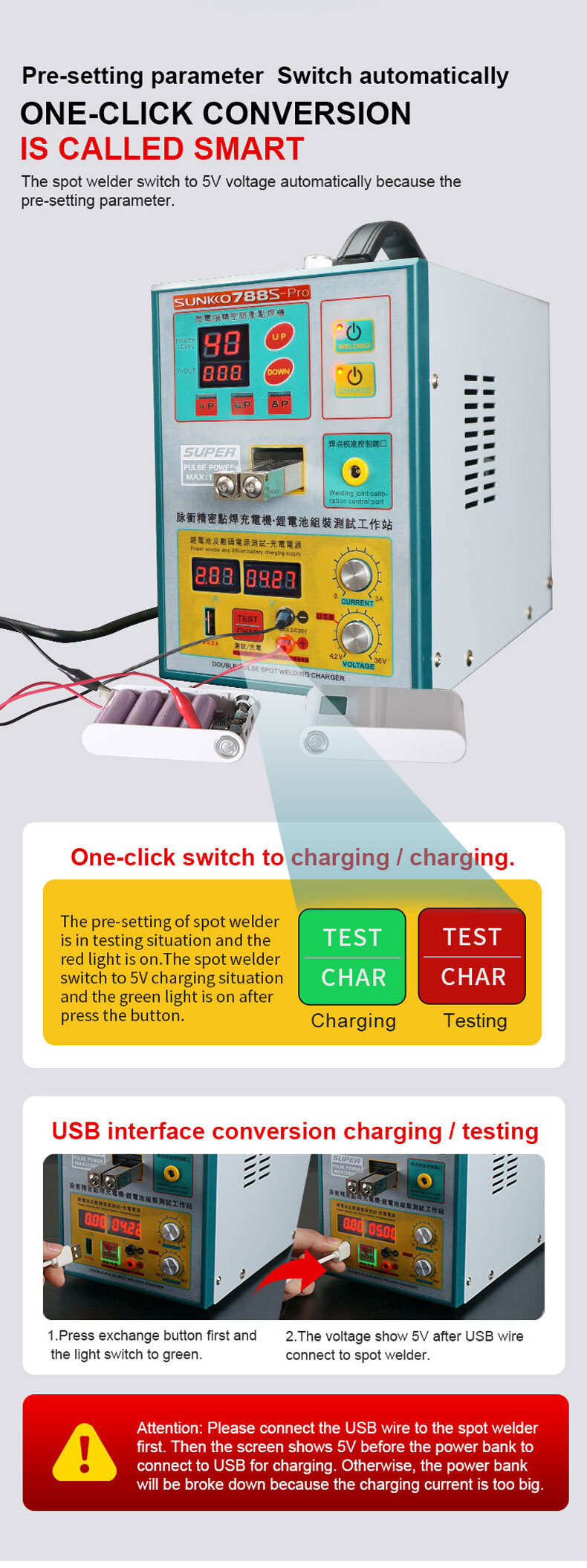

4.It has the Adjustable charging device with 4.2V- 36V or 3A, it satisfies for most single and assembled battery to charging and testing.

Application

Lithium battery pack

Strain gauge

Stainless steel mesh

Circuit board

Button battery

Welding parameters

Power supply :AC 110V/220V±20V

Output power:3.2KW(Max.)

Welding current:50-800A

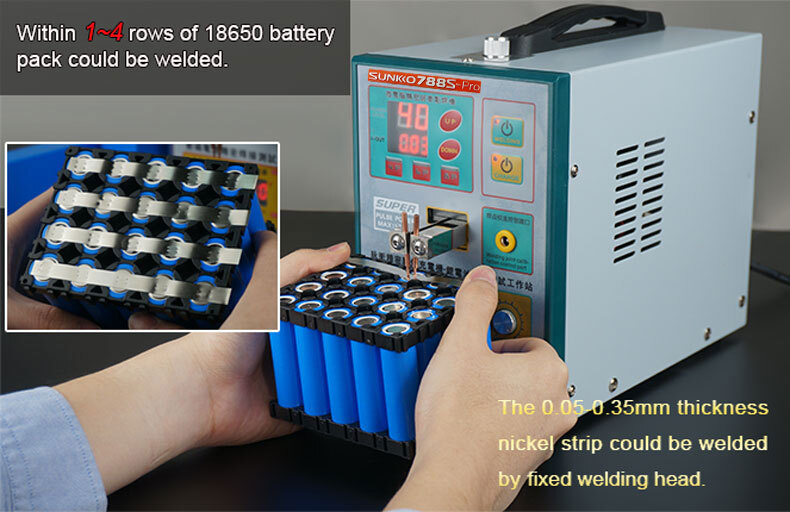

Welding thickness:0.05-0.35mm(Fixed head)

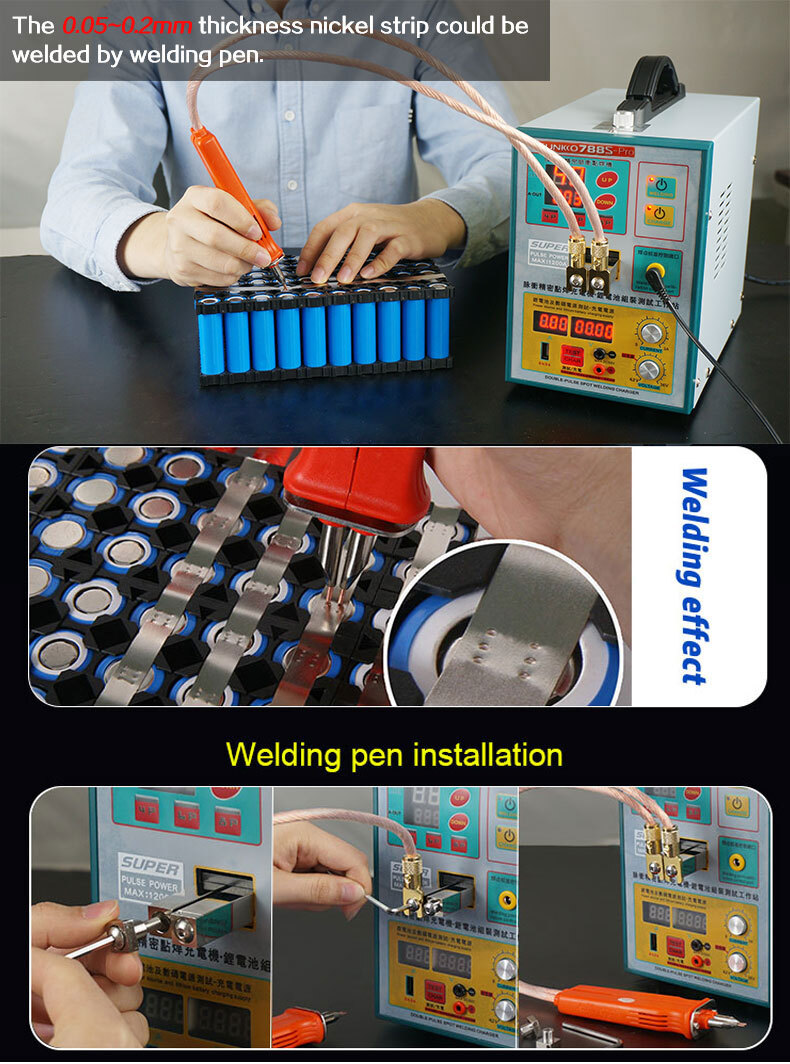

0.05-0.2mm(Spot welding pen)

Output voltage:DC 36V

Constant temperature accuracy:±5℃

Packing list:

1)788S-Pro welding machine *1 set

2)Pedal switch *1 pc

3)Big Welding pins  *4 pcs

4)Nickel plated sample *100 pcs

5)Banana cable*1 pair

6)6-section fixture *1 pc

7)Fuse tube *2 pcs

8)  Hex wrench *1 pc

9)70B red fork spot welding pen *1 pc

10) Operation Manual*1 pc

11)Needle grinding machine × 1

12)Yuan cup screw(5*10)*2 pcs



Notices for using SUNKKO spot welding machine

1. In order to obtain good weld effect, please don't use the active socket,and should be used the wall socket to ensure stable power supply.

2.Because of the instant welding large current, rated current of tripping device of the leakage protection switch should be up to 40-63A.Lower than 40A will cause tripping.

3.Please set the pressure adjuster to the right parameter to avoid welding effect in not good.

4. Please keep the surface of welding pins clean and wipe off oxide with sand paper.

5.Please keep the welding pin in sharp shape.

6. Please do not worry about the lighting in flash. Spot welder is a high power machine and discharging high current instantaneously.Because this moment is in 20ms and it is normal.
