SUNKKO T685 battery precision internal resistance tester

USER MANUAL(Click Here)

DOWNLOAD HERE:

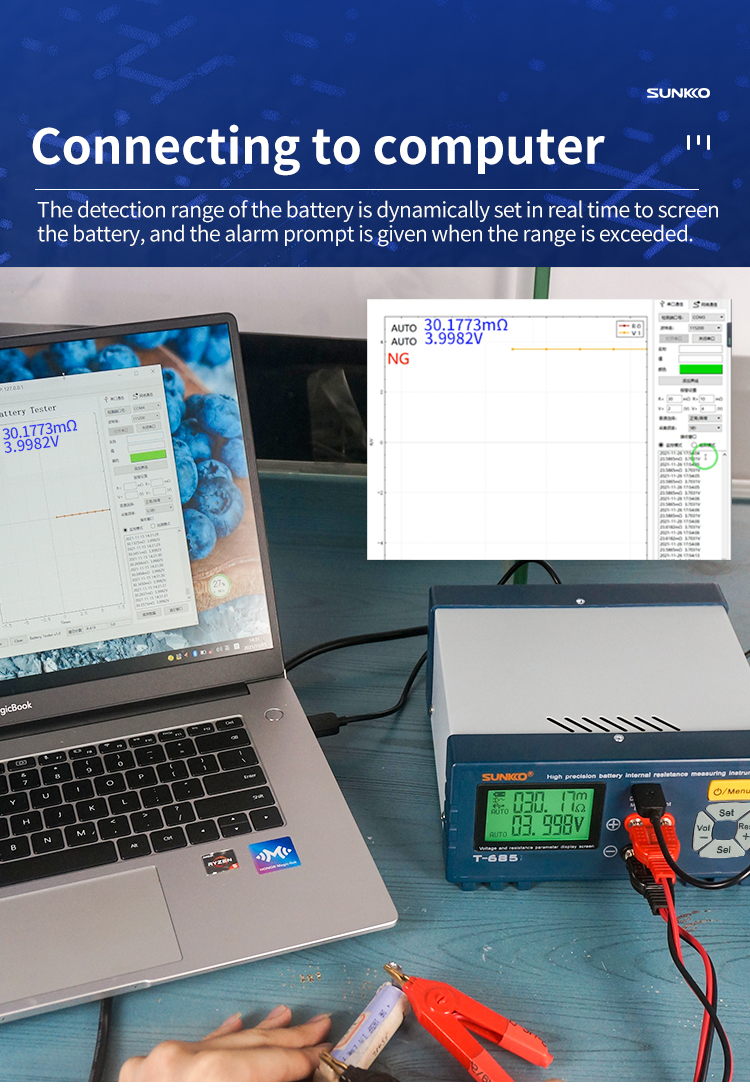

T685 TESTER ANALYSING SOFTWARE

T685 SOFTWARE TUTORIAL VIDEO

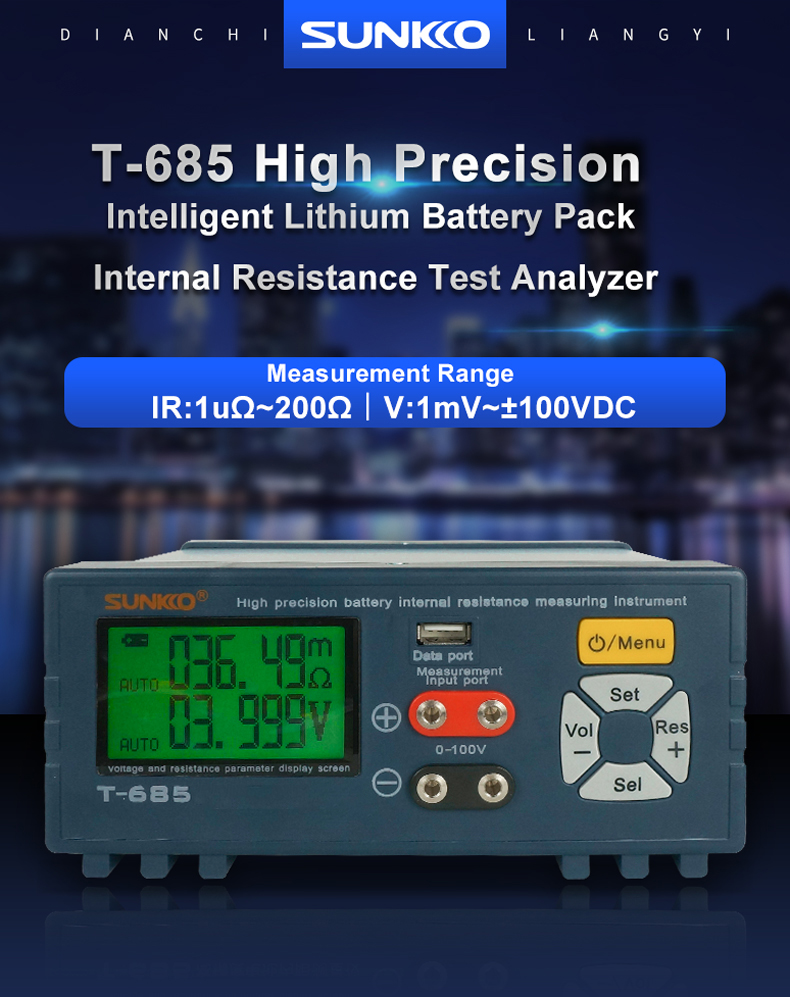

         T-685 High Precision Battery Internal Resistance Measuring Instrument

Features：

• It is controlled by a microchip and the test data is accurately displayed.
• It has the test mode with20/200/200Ω internal resistance.
• The alarm device emits an alarm when the connection line is reversed.

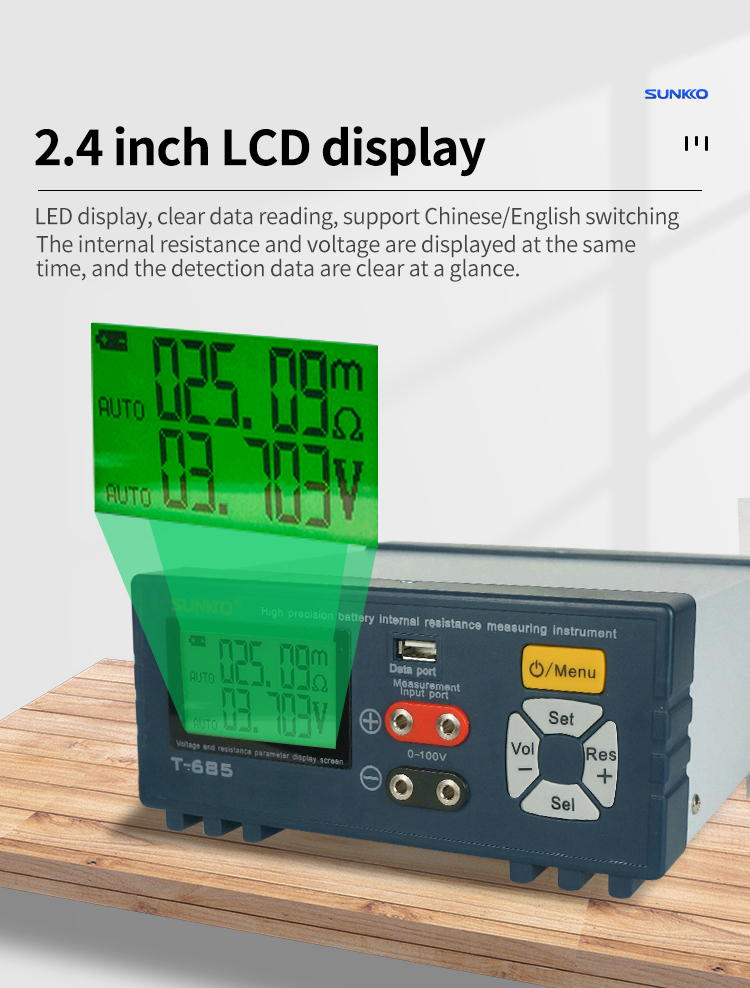

• It can display the text and status icons corresponding to testing function.

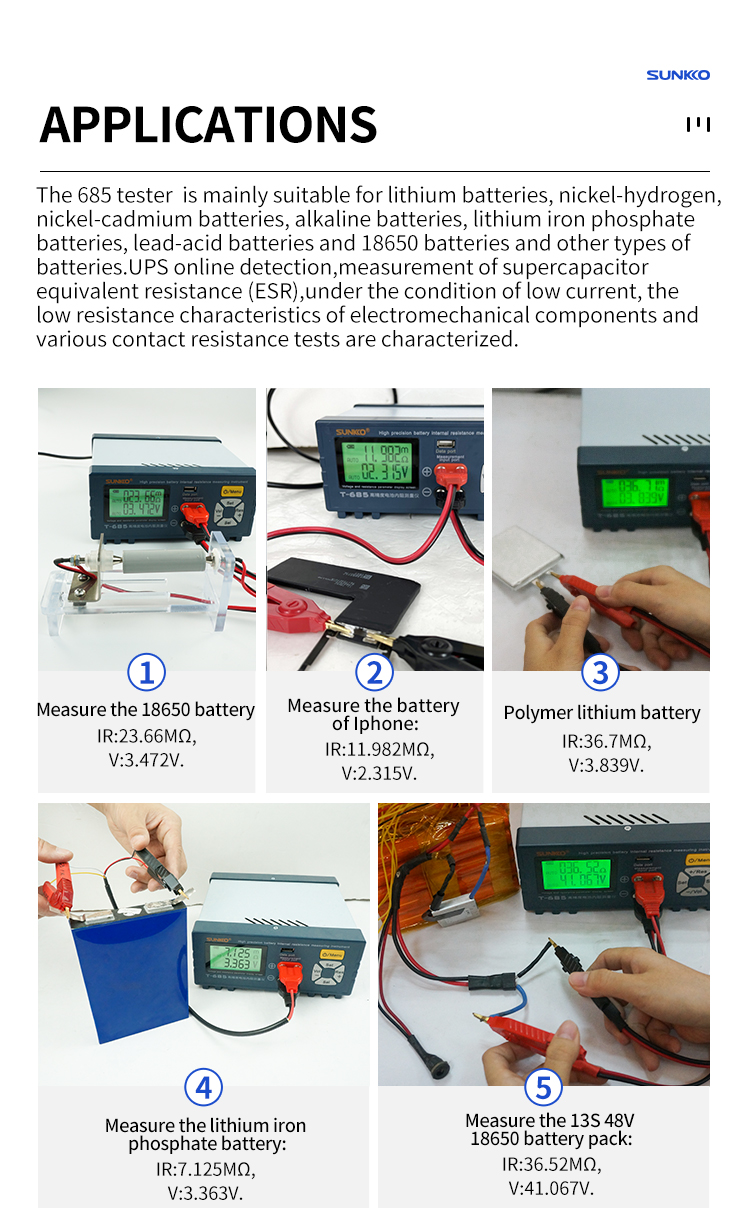

• It is suitable for testing lithium/nickel battery mobile phone battery, polymer soft package lithium battery, Lithium iron phosphate battery battery pack,etc.

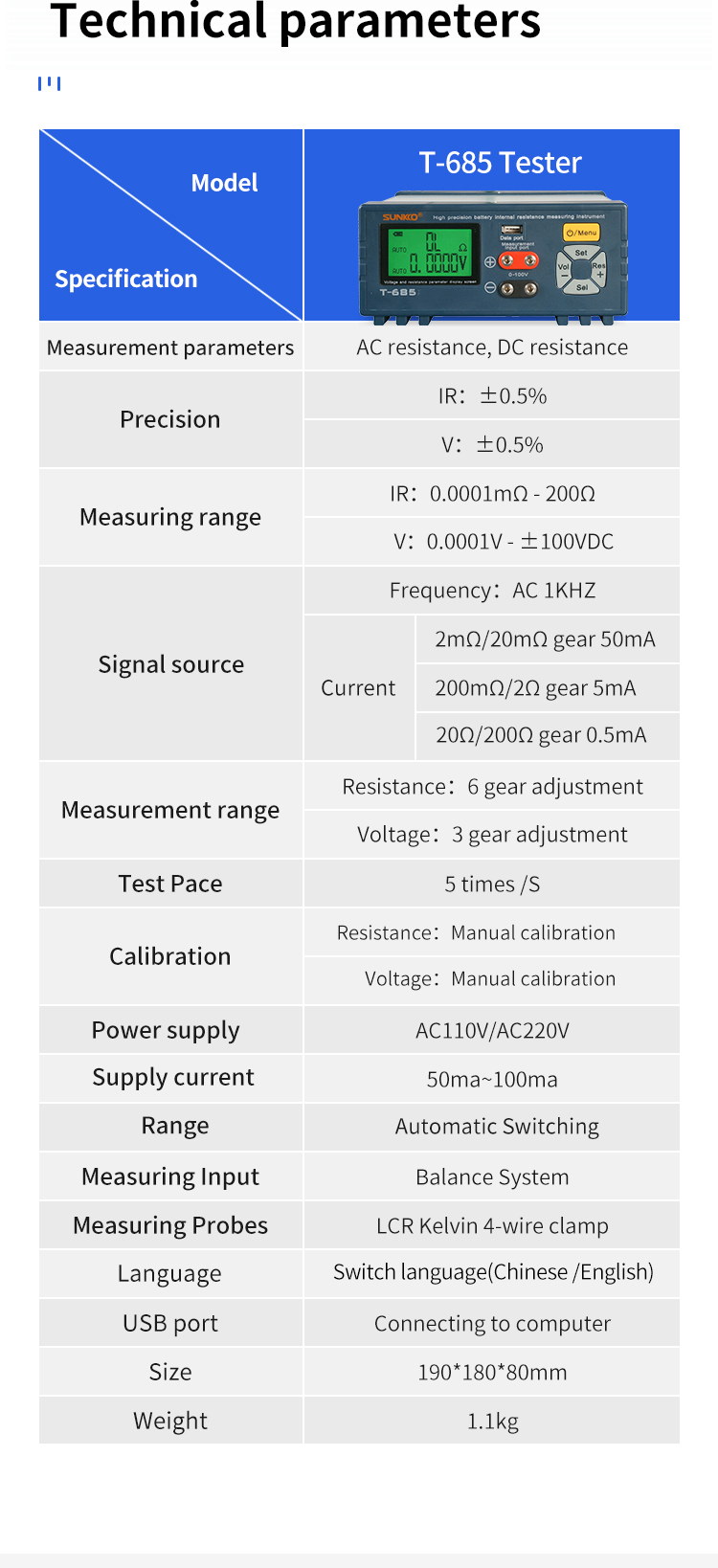

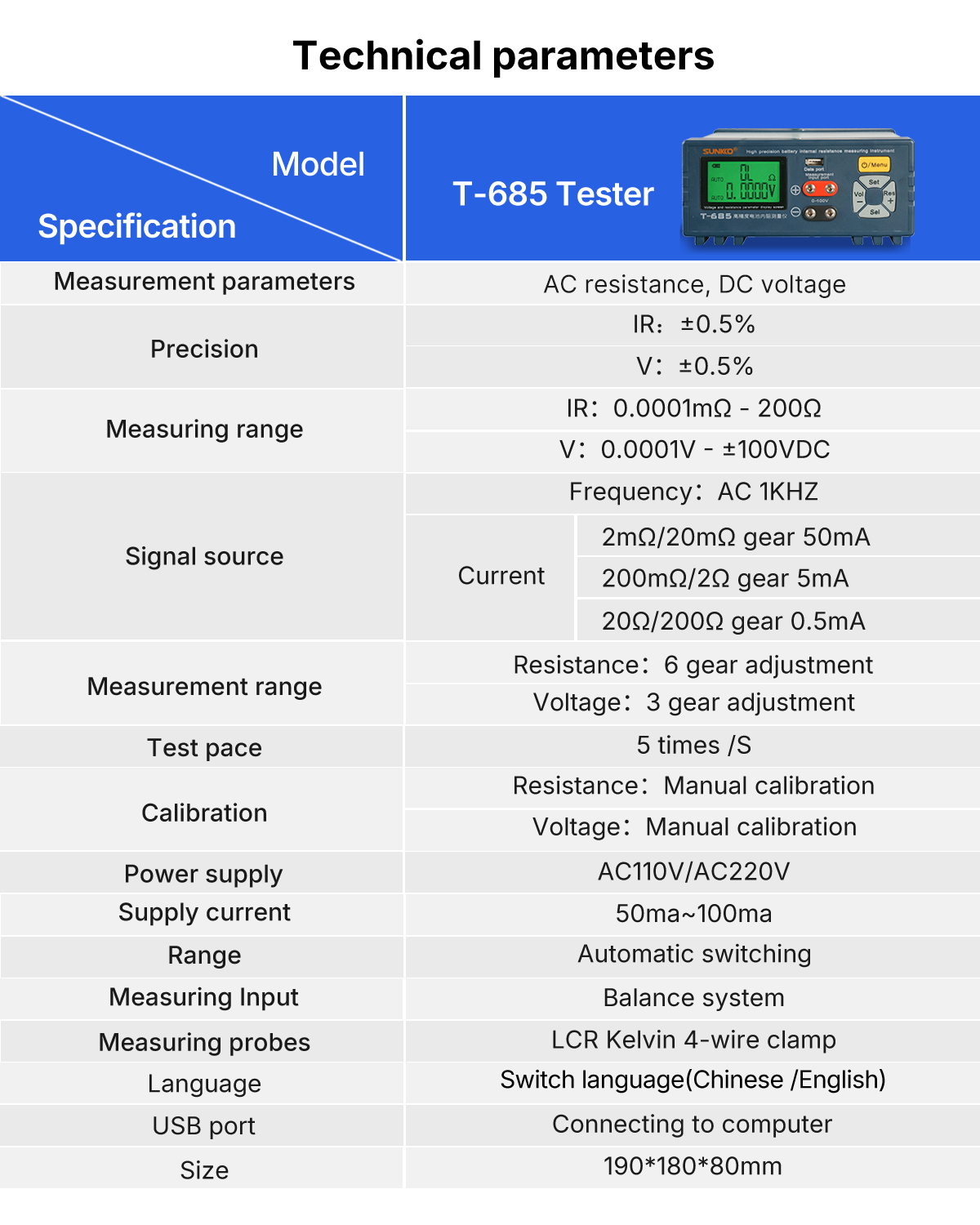

Parameters

Product model:T685

Supply voltage：AC 110V/220V±20V

Measuring voltage range：DC 0.0001V~±100V

Measuring internal resistance ：0.0001mΩ~200Ω

Voltage value error：±0.5%

Resistance value eror：±0.5%

Voltage ranger：3 Range (automatic and manual）

Resistance range：6 Range (automatic and manual )

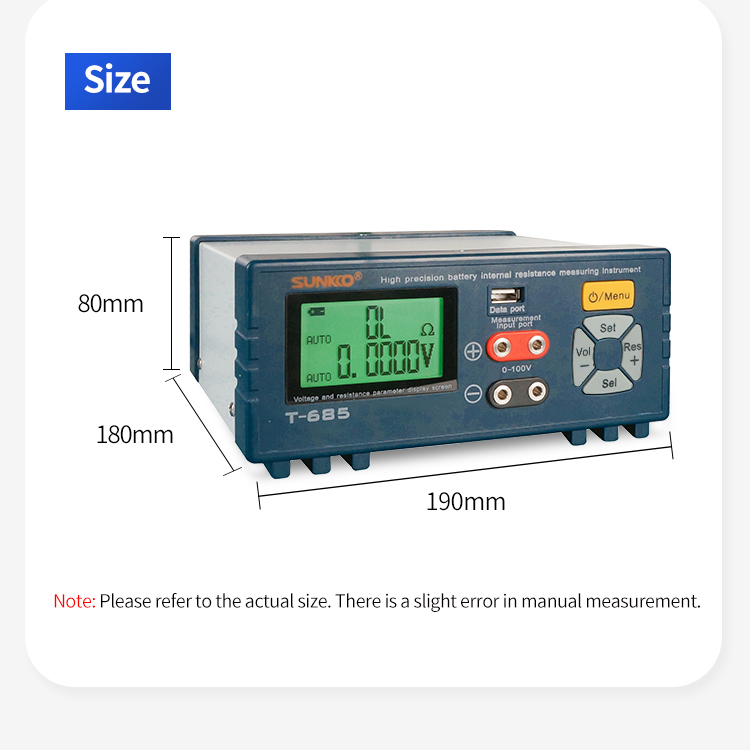

Dimensions：190x180x80mm

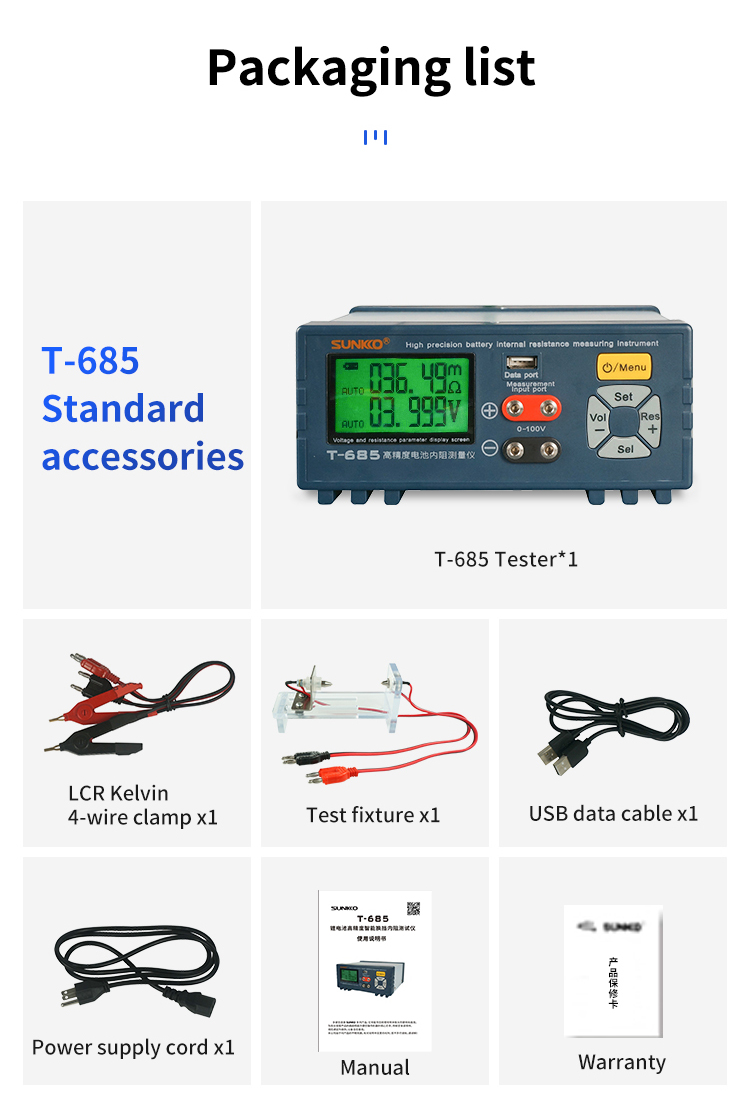

Packing List：

T685 Tester*1set

Power cord*1

Double-ended data cable*1

Test fixture*1

Red and black clips*1

Instruction manual*1
