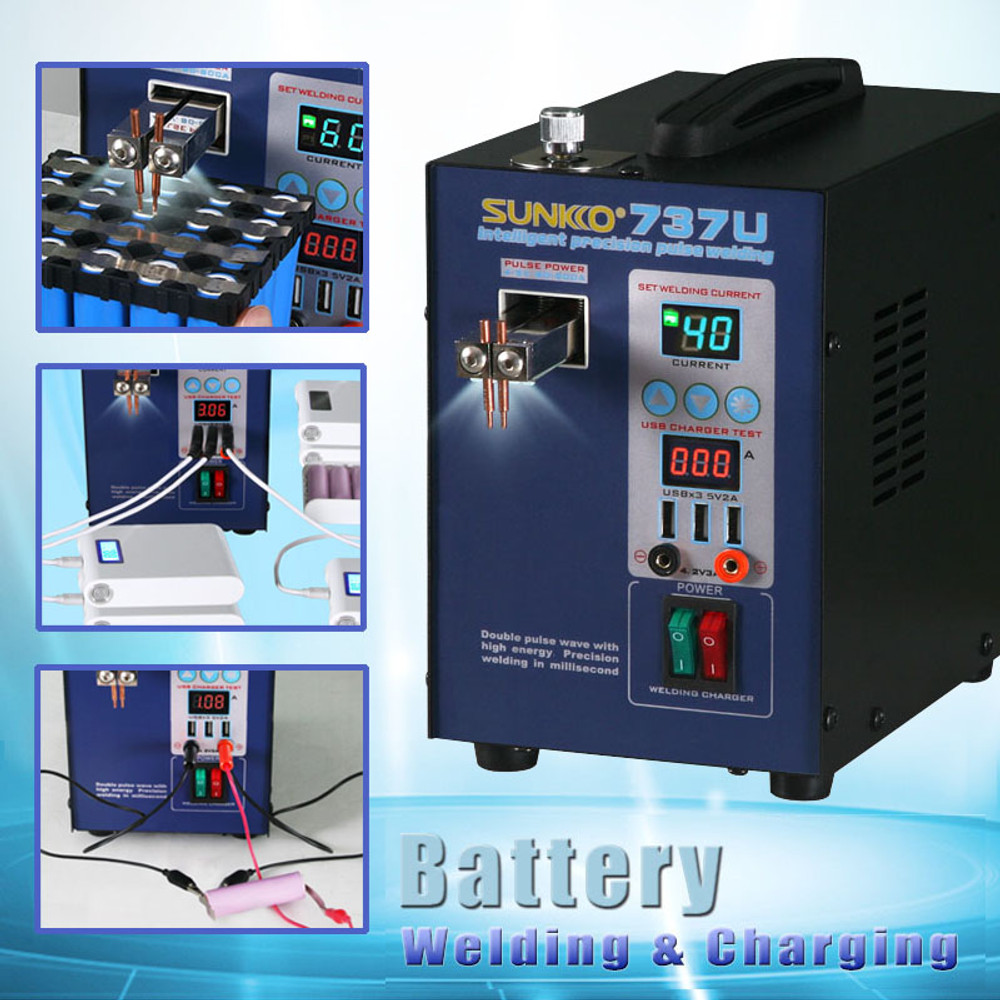

SUNKKO 737U Battery Spot Welder Transformer Inversion Pulse Welding Machine

                          737U Battery Welding & Testing &Charging 3 In 1 Machine

Welding parameters：

Input voltage：AC 110V/220V

Welding current：50~800A

Output power:2.8KW(Max)

1）737U welding machine *1 set

2)  Welding needles  *2pairs

3） Charging wires*2pcs

4） Nickel strip 0.1*4*100mmx30pcs,0.15*5*100mmx30pcs

5）6-section fixture *1 pc

6)Hex wrench *1 pc

7)Operation Manual*1 pc

Notices for using SUNKKO spot welding machine

1. In order to obtain good weld effect, please don't use the active socket,and should be used the wall socket to ensure stable power supply.

2.Because of the instant welding large current, rated current of tripping device of the leakage protection switch should be up to 40-63A.Lower than 40A will cause tripping.

3.Please set the pressure adjuster to the right parameter to avoid welding effect in not good.

4. Please keep the surface of welding pins clean and wipe off oxide with sand paper.

5.Please keep the welding pin in sharp shape.

6. Please do not worry about the lighting in flash. Spot welder is a high power machine and discharging high current instantaneously.Because this moment is in 20ms and it is normal.
