SUNKKO CH12V20 Lithium Battery Pack Intelligent Charger 125V20A

Summarizes

CH12V20 lithium battery pack intelligent CNC charger is a safe charging solution designed for Li-ion /LifePO4 battery modules. lt is a professional lithium battery charging device that integrates intelligent matching, safety protection and efficient charging.Through intelligent voltage digital control adjustment technology and multiple safety protection systems, the potential safety hazards of overcharging and short circuit caused by incorrect parameter settings in traditional chargers are completely resolved, providing dual protection for battery life and user safety. Protecting safety with technological innovation, so that every battery can be charged and used with peace of mind.

Features

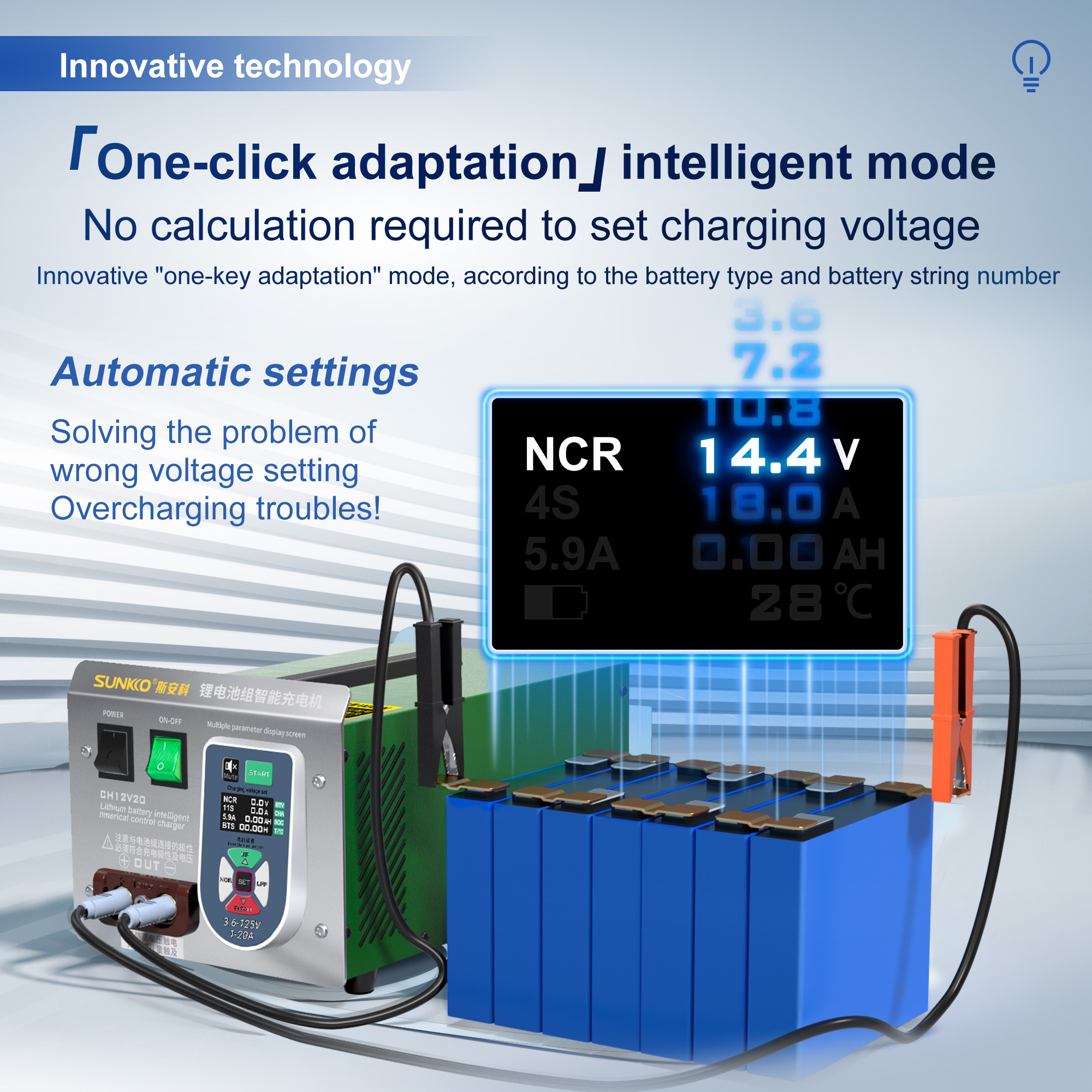

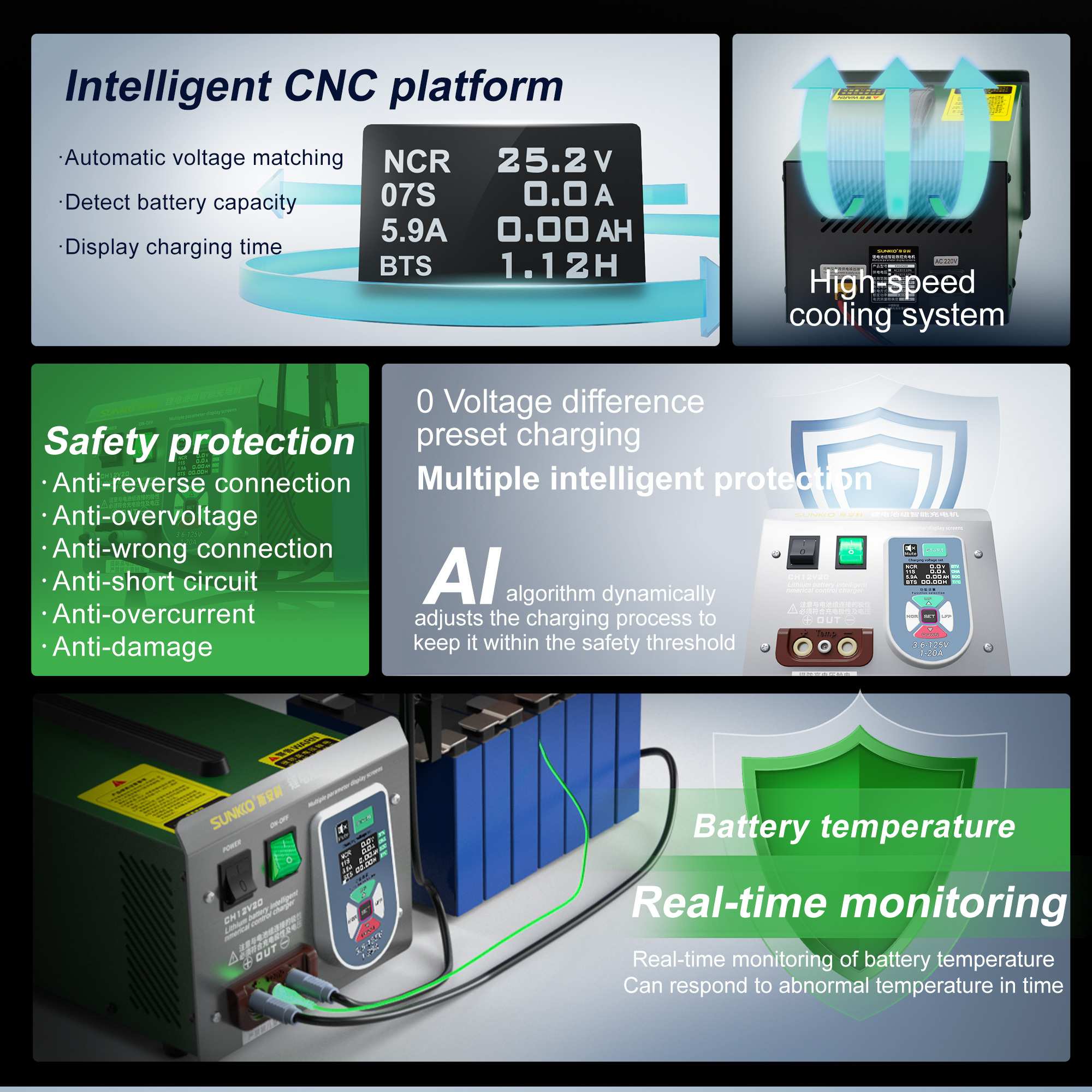

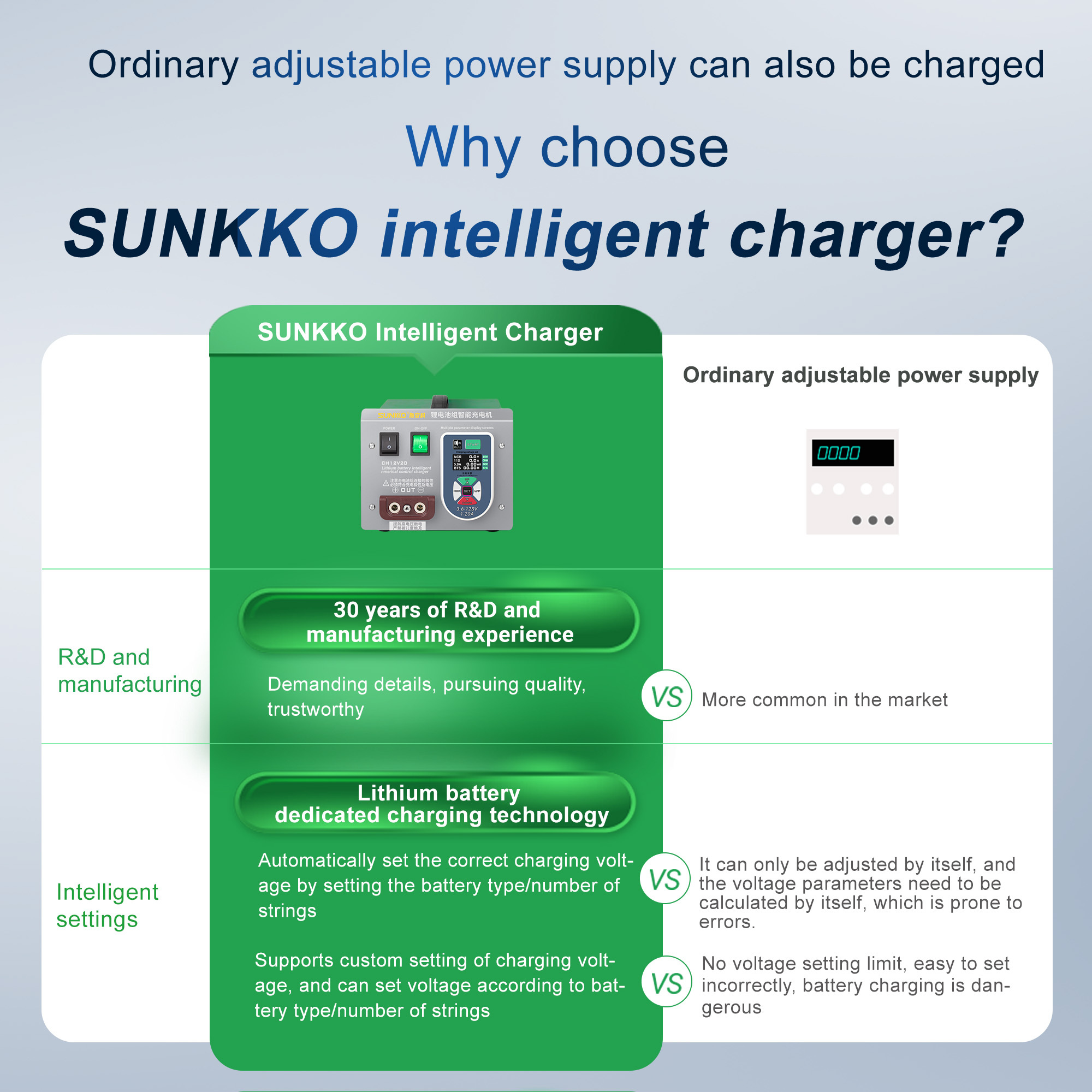

1. Intelligent voltage matching system, the first "one-key adaptation" mode: automatically

identify and accurately set the charging voltage according to the battery type and number of battery strings.

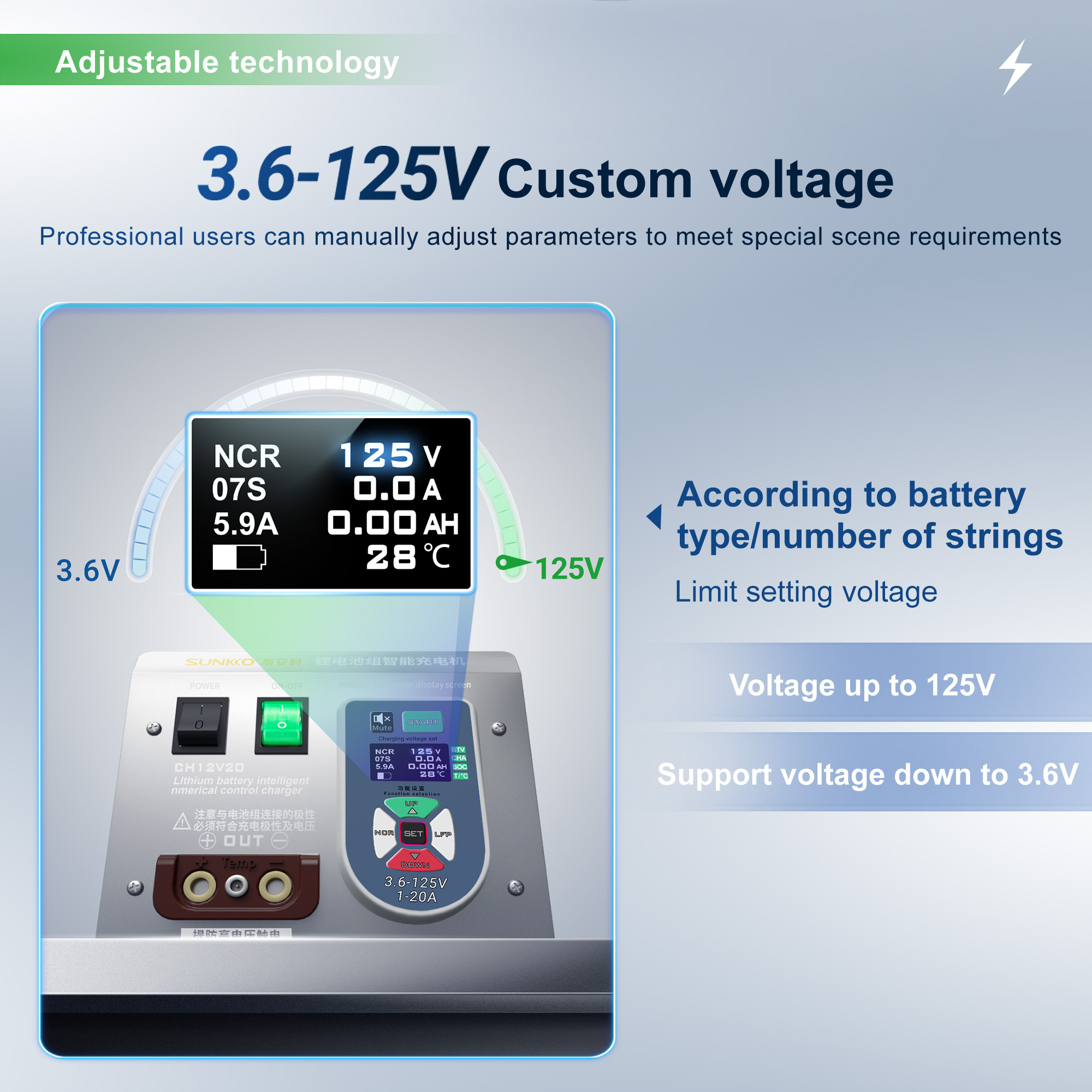

2. Support custom mode: professional users can manually adjust parameters to meet theneeds of special scenarios.

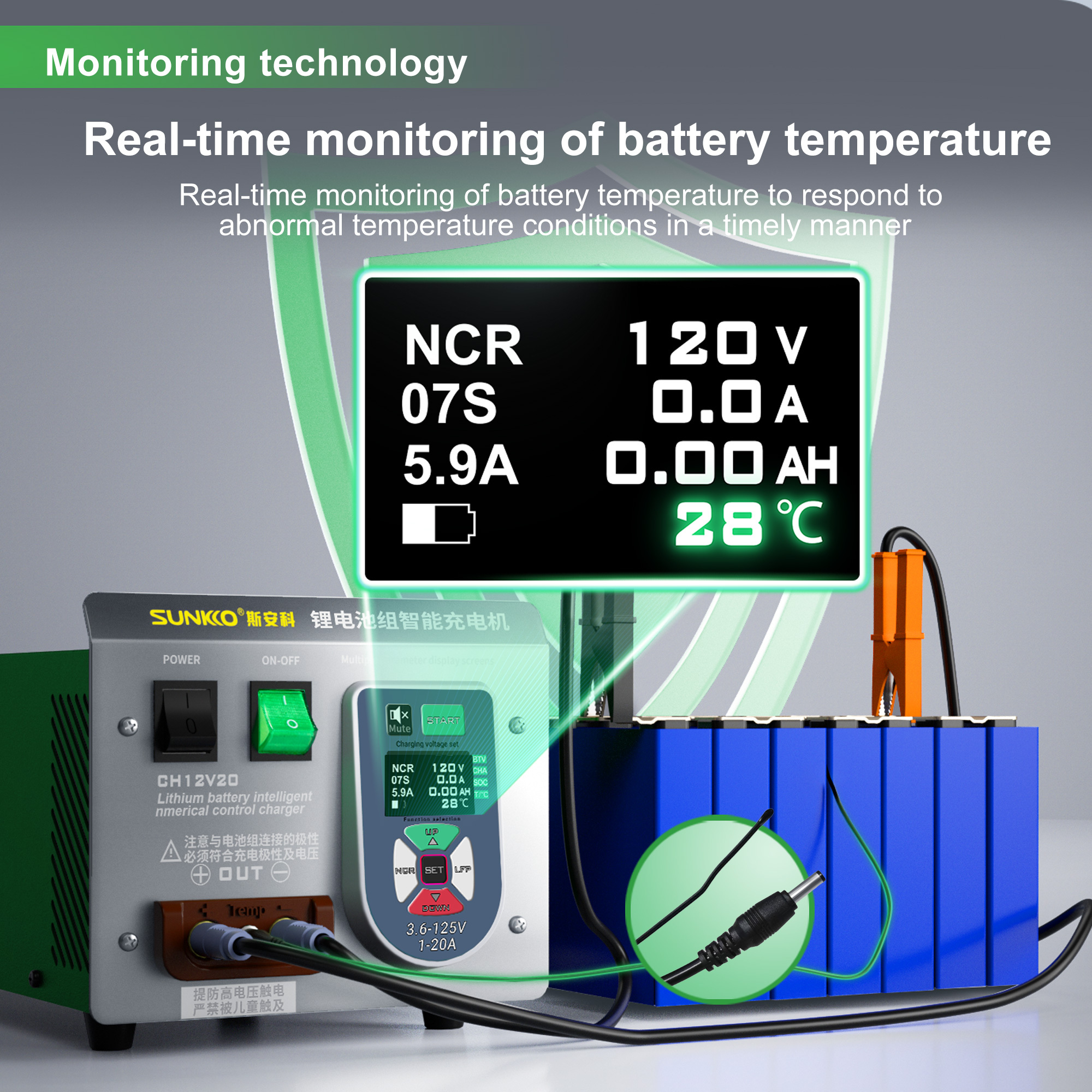

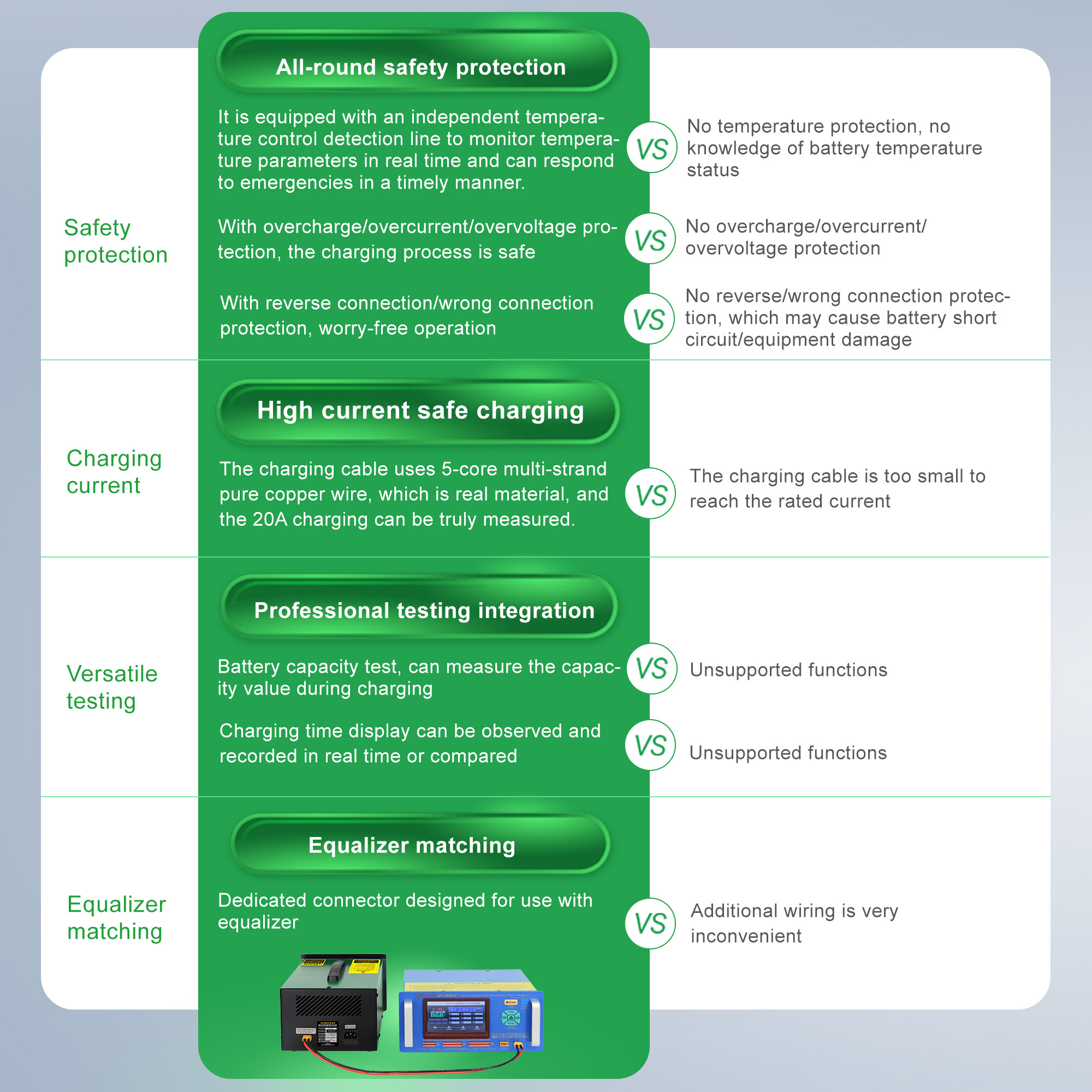

3. Triple temperature control protection, real-time monitoring of battery and devicetemperature, automatic current reduction or power off when abnormal temperature rises.
4. The internal components are reasonably arranged and combined withthe heat dissipation cooling system, the impact of high temperature environment on electronic components can be effectively avoided.

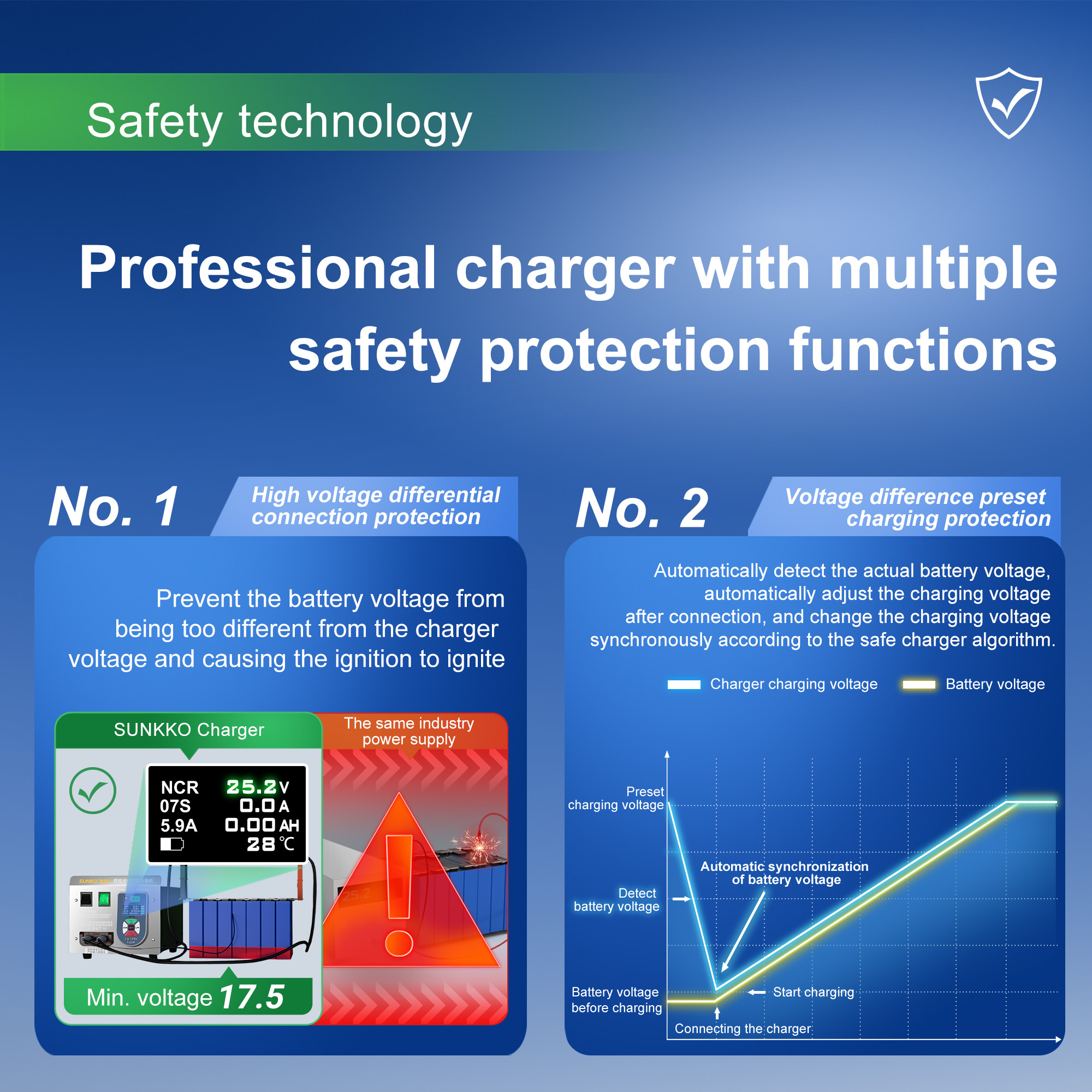

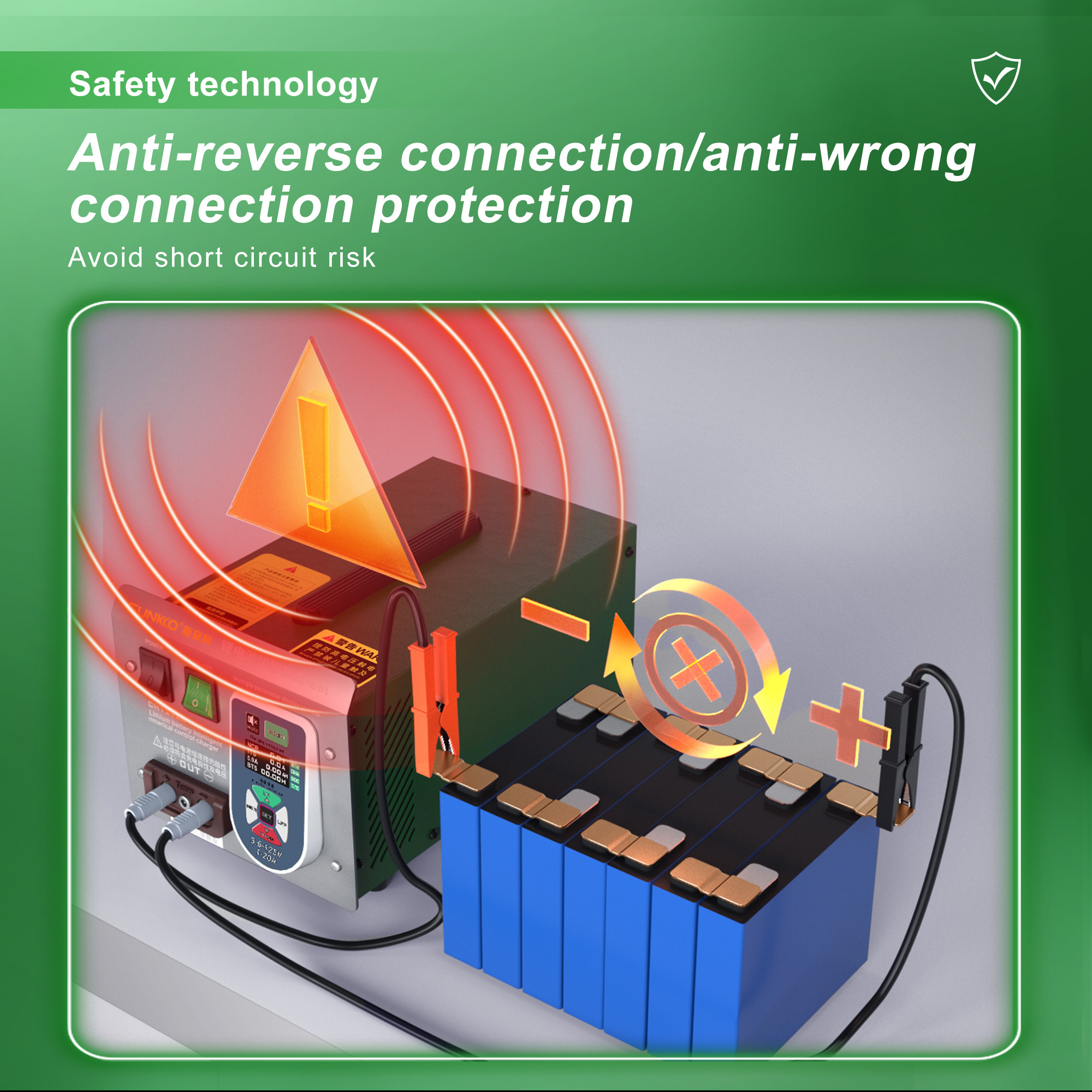

5. Anti-reverse connection/ anti-wrong connection protection to avoid short circuit risk.
6. Overcharge/overcurrent/over voltage protection triple current protection.AI algorithm dynamically adjusts the charging curve to ensure that the entire charging process is within the safety threshold.

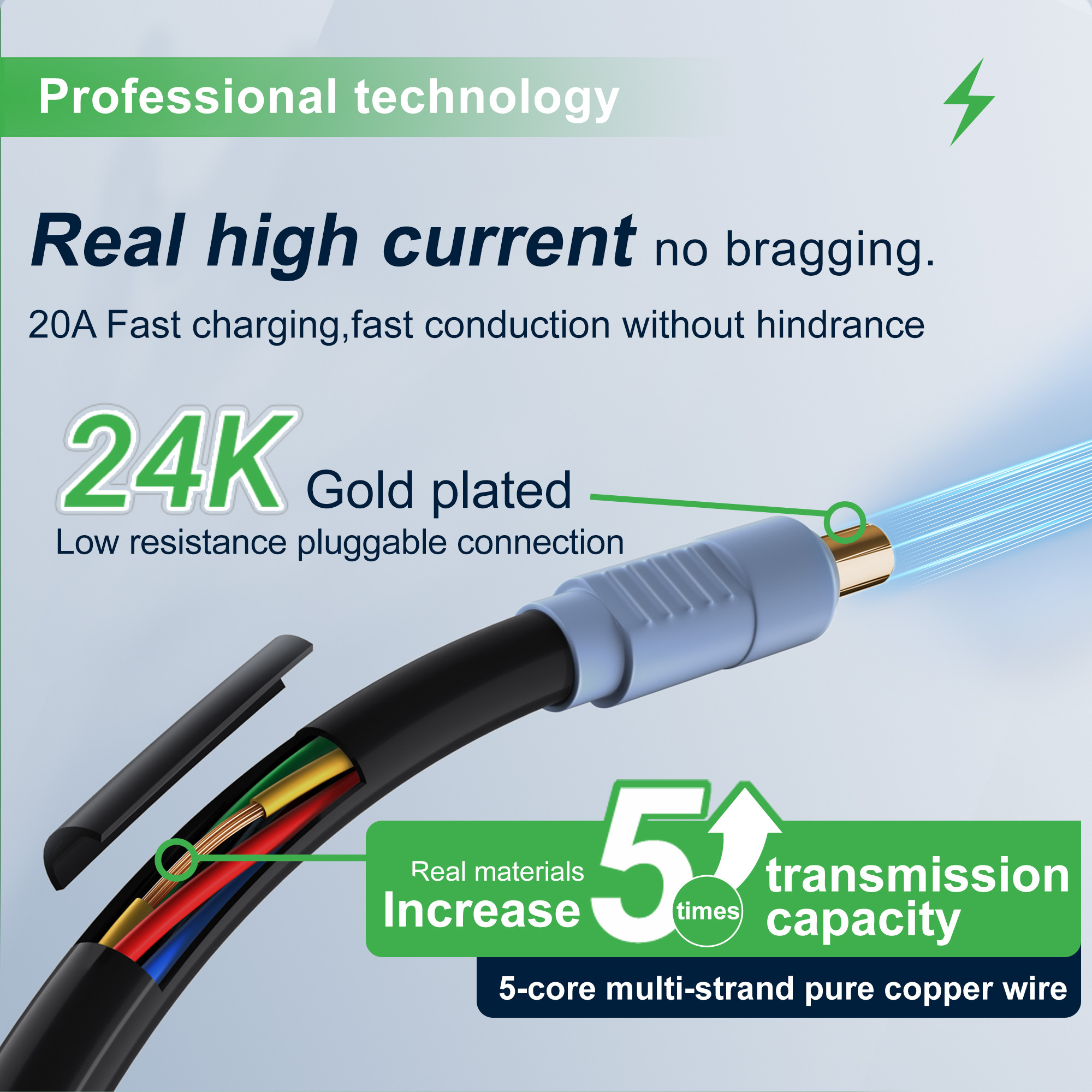

7. The maximum output current is 20A, suitable for multiple scenarios such as medium andlarge energy storage systems, power tools, and new energy vehicle battery modules.
8. Intelligent charging strategy reduces battery loss and increases cycle life by more than 20%.

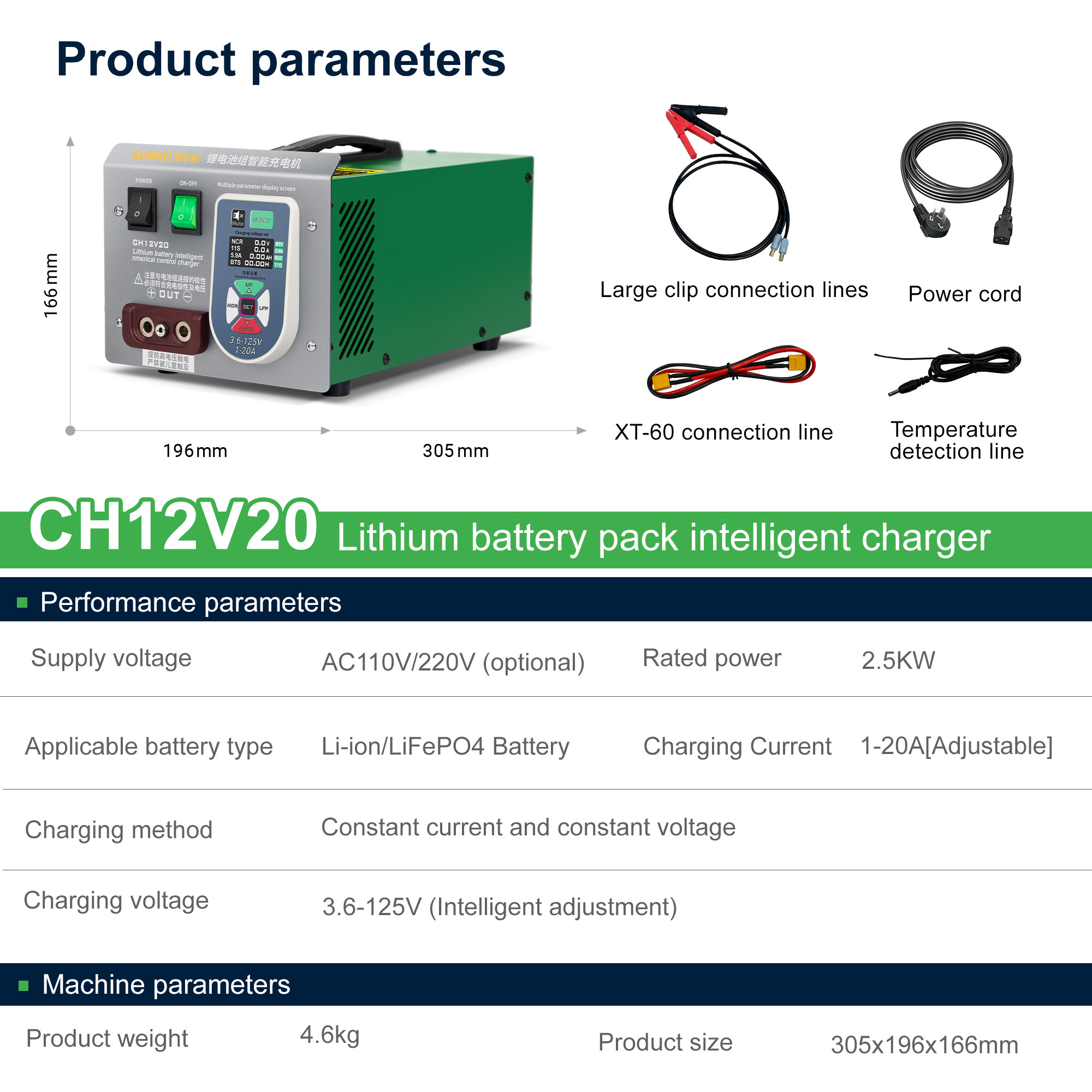

Smart charger product parameters

Product Name:Lithium battery pack intelligent CNC charger

Model:CH12V20

Supply voltage:AC110V-220V(Model selection)

Rated power:2.5KW

Applicable battery type:Li-ion/LifePO4

Charging method:Constant current +constant voltage

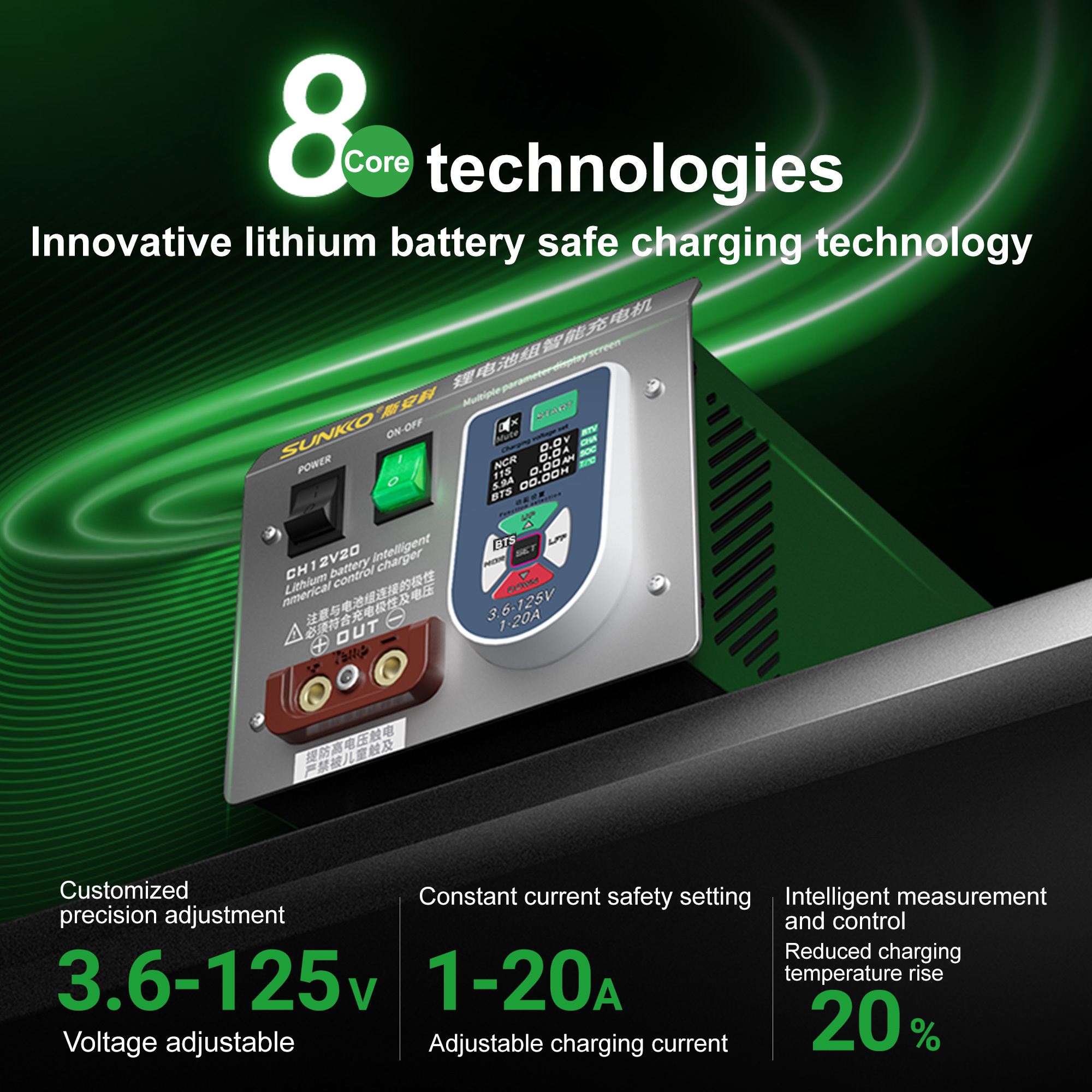

Charging voltage:3.6~125V (Intelligent adjustment)

Charging current:220V:1-20A(Adjustable)

              110V:1-10A(Adjustable)

Weight:4.6kg

Size:305*196*166mm
